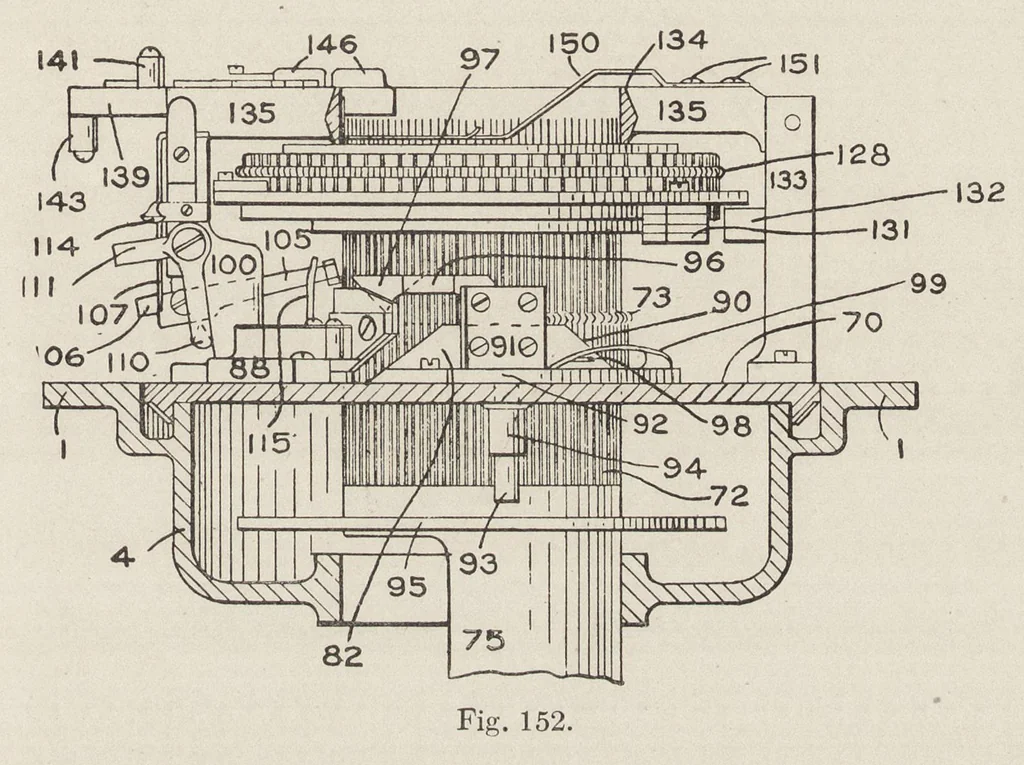

rom the bottom of the cup-shaped bearing 4. he ring 76 has a projecting lug 78 (see Figs. 149 and 150), to which block 79 is secured by means of a bolt. A stop 81 extends vertically through the inner end of the block and projects above it. ‘The web-guide 75 rests on the stop, except when raised for… … The Knitting Cams. A cam-web 82 which forms about three- fourths of a circle (see Figs. 152, 153, 154, 157, and 158), is formed at each end with an incline or cam 83, and is secured to the ring 70. The cams 83 act on the heels of the needles to raise them during the knitting operation, the heels…
