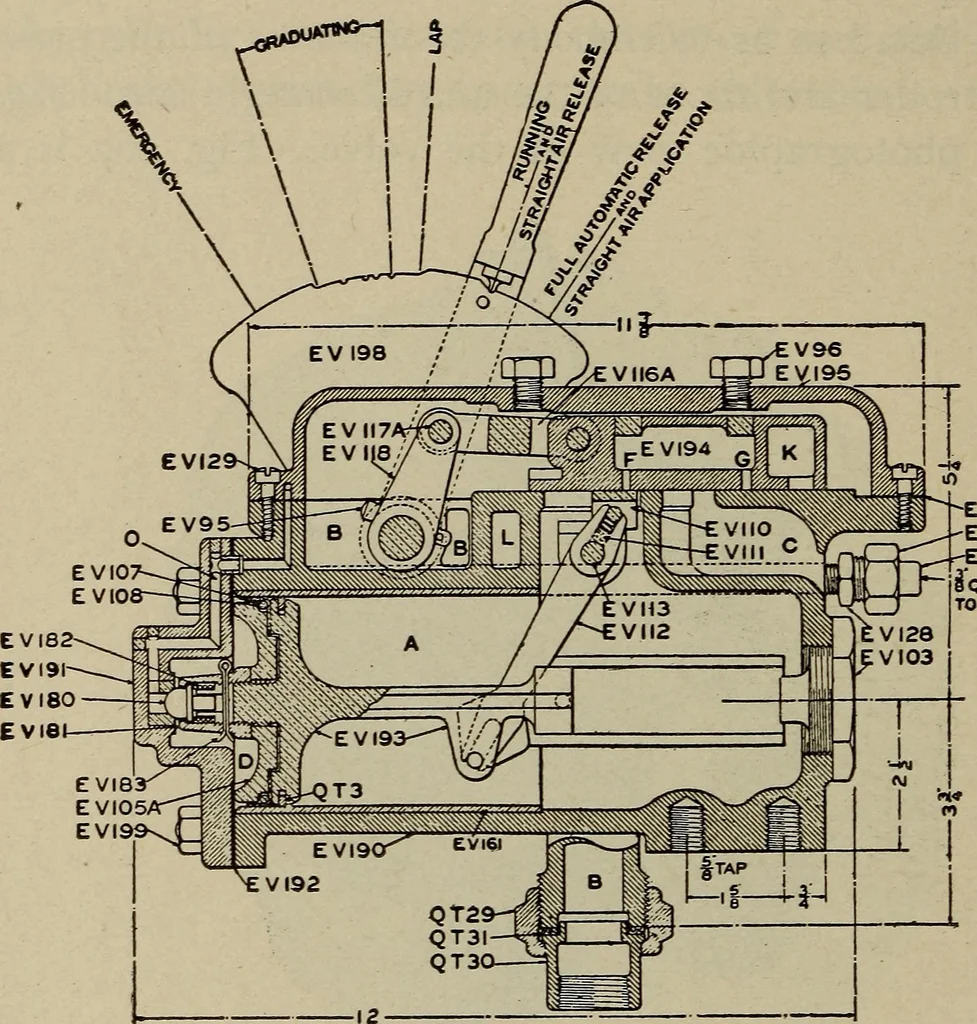

94 and how the graduating valve EV nois controlled by the piston EV 193. This view also showsthe different positions of the brake valve handle. Fig.268 is a top view of the valve with the cover, slide valve 633 634 LOCOMOTIVE ENGINEERING and handle removed, showing seat and connections forthe… … VI59V60VI58 IQOPPERPIPE1 SUPPLEMENTARYRESERVOIR Fig. 267. The main reservoir pipe is connected from the pressurecontroller to chamber B (Fig. 267) in the top of the-valve. The brake pipe is connected to chamber A. Dis-charge of brake pipe air to the atmosphere for serviceapplications occurs through…
