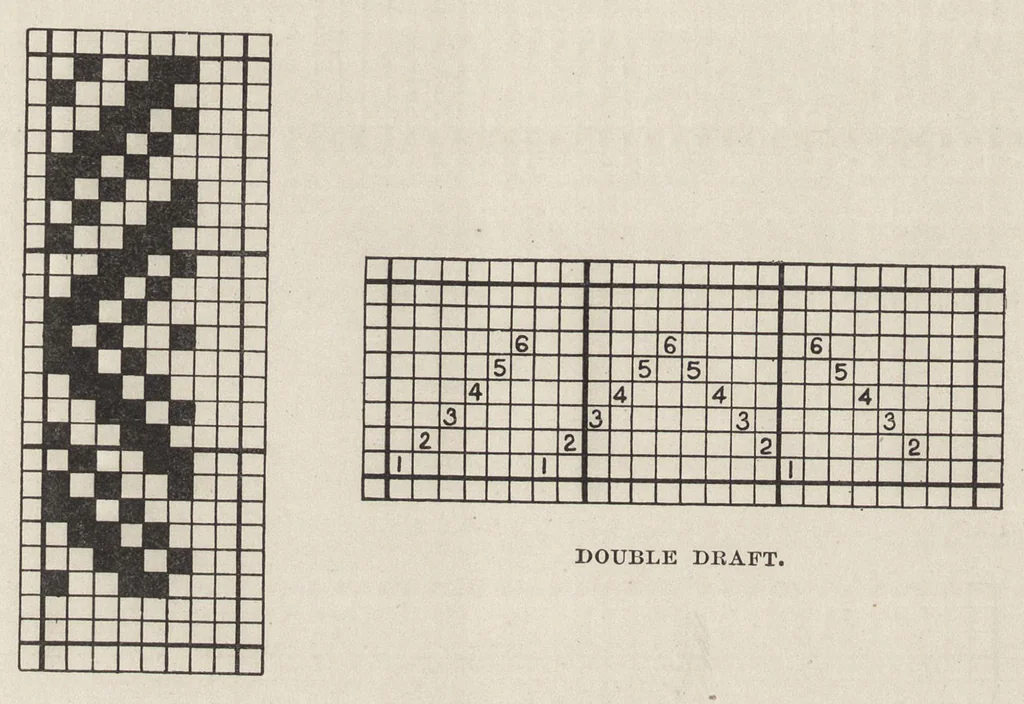

60 TEXTILE DESIGN. As every extension of the draft in this manner enlarges the figure in a duplicate proportion, that is, as the square of the number of threads in one set of the draft, such patterns, when the harnesses are numerous, will occupy a considerable space on design paper. In all double… … Fig. 109. The double draft, Figs. 108 and 109, with any system that may be adopted, always produces two square or diamond effects. These are formed one within the other, and are again surrounded by others of the same character. Triple Drafts. Fig. 110. A triple draft enlarges the dimen- sions of…
