The structure of fibres, yarns and fabrics : being a practical treatise for the use of all persons employed in the manufacture of textile fabrics (1891)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia : E.A. Posselt ; London : S. Low, Marston, Searle & Rivington, Ltd. · leaf 122

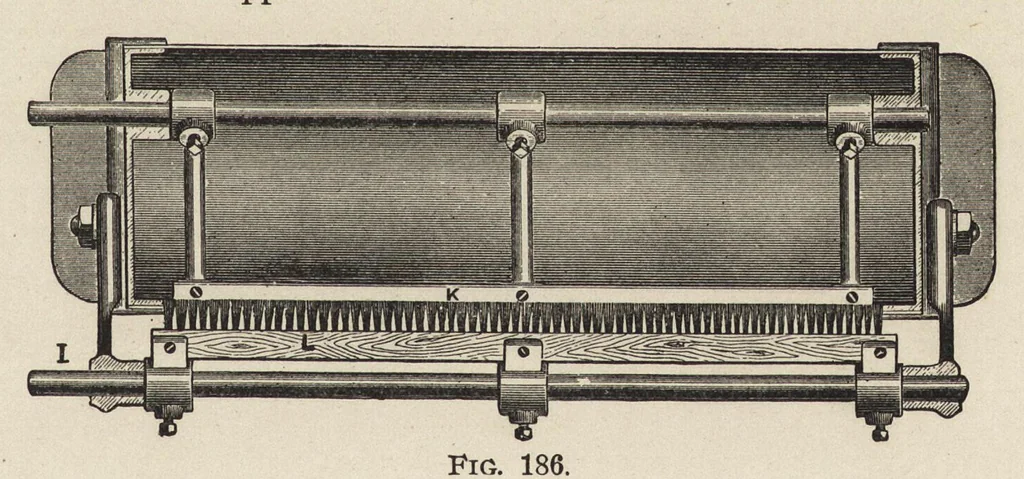

ts per hundred pounds of stock to suit the work in process, and is completely under the control of the carder. Figs. 185 and 186 are given to illustrate such an oiler as built by Sargent & Sons. Fig. 185 represents an end elevation of the device ; Fig. 186 is a plan of oiler section showing dipper… … Fig. 186. these stands, one at each end, which set outside of the feed sides of the carding engine. B, is the oil tank which extends across the feed from side to side, and stands about eight inches above Fig. 185. the wool on the feed-table. It holds about four gallons of oil. It also contains the…
