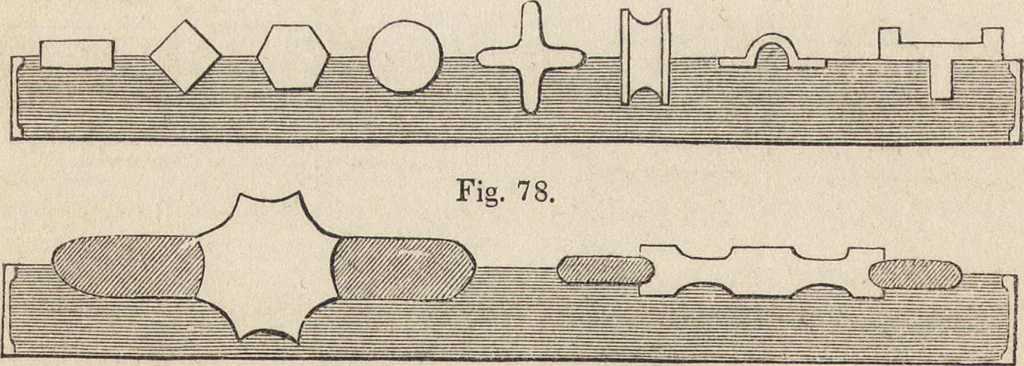

E which caused the obstruction. Con-sequently, in such a case, the mould would be made with a smallloose part between A and E, so that when the principal portion,from A to F, had been lifted perpendicularly or in the direction ofthe line e, the small undercut piece, A to E, might be… … each half of the mould, because none of them encroach beyond theperpendicular line, or that in which the mould is lifted ; a and b,could be laid in exactly upon the diagonal, or upon one flat side, orpartly embedded; and in like manner /, g, 7t, might be sunk moreor less into the mould, their sides…
