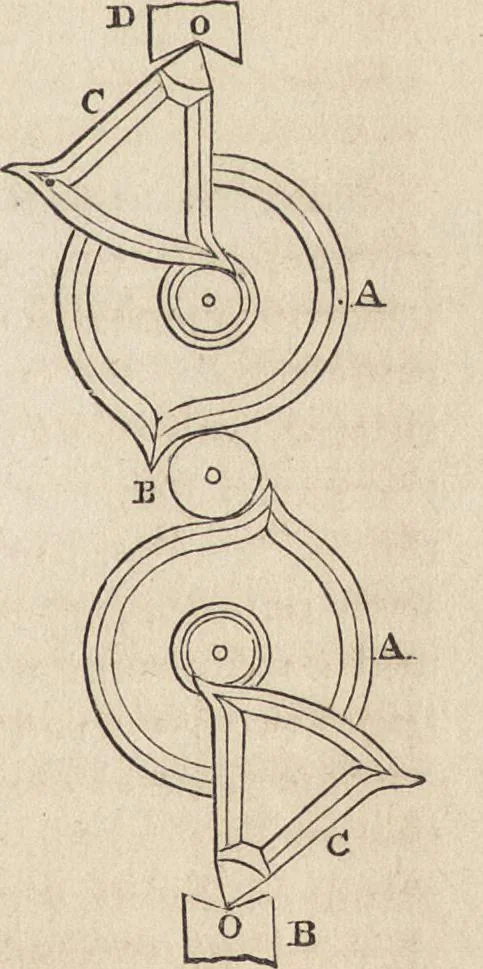

e many arrangements forshears, punches, and presses for iron and steel,one of which may be described thus:— A A, Fig. 286, are two eccentric wheels,and B is a roller between. C C are two pairof sectors, constituting the bearings of the axesof the sectors. The axes of the sectors are ofthe knife… … 268 PUNCHES. eccentric wheels A A, which have their bearings on the faces of thesectors, which are transferred the length of their faces right andleft, the sectors being knife-edge shaped at the centres of motion0 0, which revolve with very little friction. When A A have madetheir revolution the…
