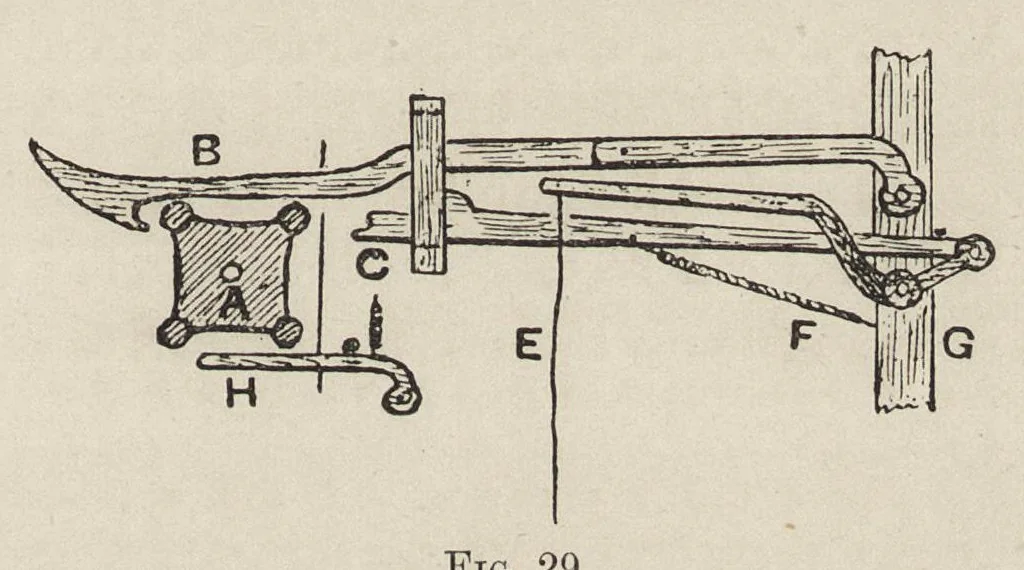

urning the cylinder, and both it and the pushing catch, c, pass through a keeper or bracket, D, on the side of the machine. There is a rise on © a little back from the point, Fic. 28 and when the cord & is pulled down c is shot forward by the lever, which has its fulcrum at a, and in going forward… … shears when the machine Fre. 29 is working, by reason of the cards catching, or if the shears are too long, or it may arise from other causes. In this case the cylinder would come in with one corner against the needles, and be pressed heavily against the needle plate. Some of the lévers would…Jacquard weaving
