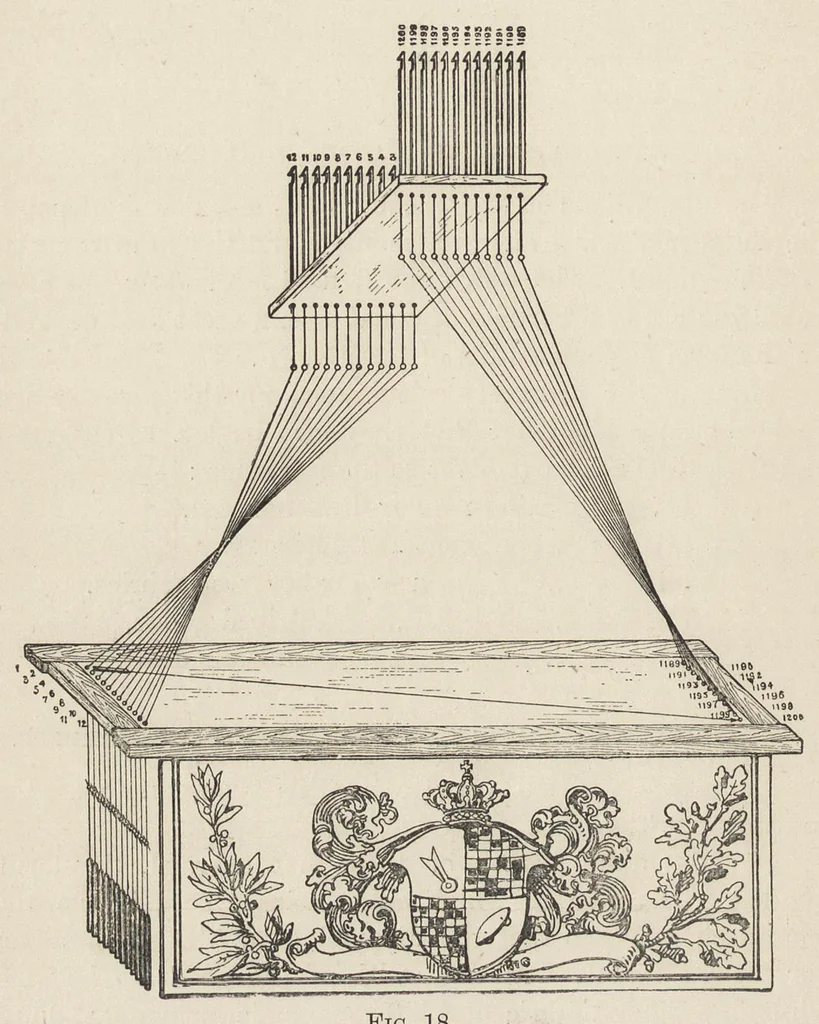

78 SPINNING AND WEAVING CALCULATIONS. An instance of this class is afforded by Fig. 18. At the top is seen the Jacquard machine with two rows of 12 hooks each. Lower down is the comber board connected with the rows of hooks, whilst lower still on the left are 12 cords with … Fig. 18. mails, and on the right is shown the design to be reproduced. For this a single harness is necessary owing to the varied character of the figuring throughout the whole width. Assuming now that the fabric as shown contains 1200 warp
