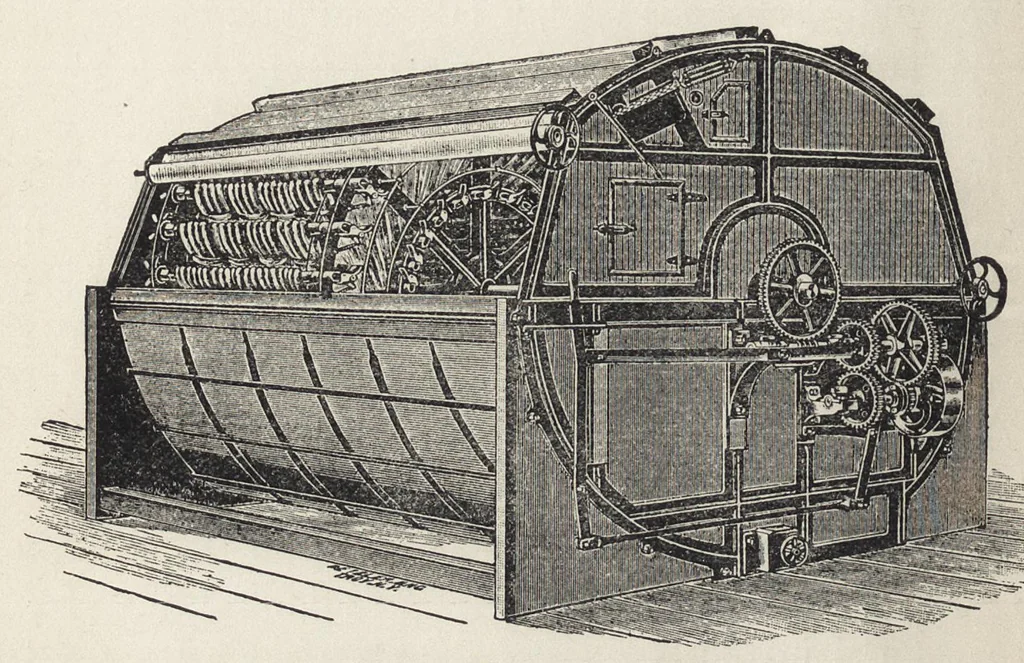

138 PRINCIPLES OF DYEING On a central axis are built two disks or rod carriers, which can revolve in the dye-vat, the revolution being given by suitable gearing, which is shown at the side of the ma- chine. On the outer edge of the disk are chps for carry- ing rods, on which one end of the skein of… … Fig. II. — Klauder-Weldon skein-dyeing machine. the axle. The revolution of the disks carries the yarn through the dye liquor, and at a certain point the rods carrying the yarn are turned. In another form of skein-dyeing machine the yarn is hung in a vat on dye sticks, or reels, which are caused to…
