Nisbet, Harry · London : Scott, Greenwood & Son ; New York : D. Van Nostrand · leaf 234

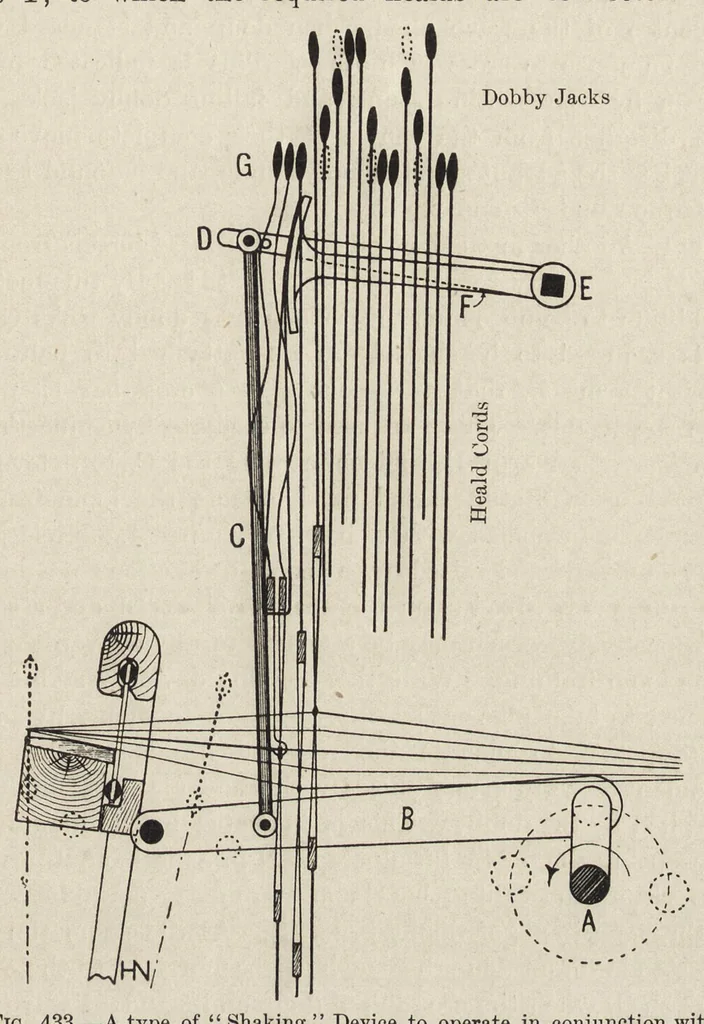

223 GAUZE AND LENO FABRICS. the connecting arms ; and C, a connecting rod to oscillate an arm D mounted upon a square cross-bar E, placed above the healds, and upon which are also mounted half-moon quadrant arms F, to which the required healds are connected. The … Fig. 433. — A type of " Shaking " Device to operate in conjunction with Open Shed Dohbies employed for Leno Weaving, to facilitate the crossing of Warp Ends. same healds are also attached to separate dobby jacks jG. 1 The disadvantage of this arrangement, however, is that it (does not permit of…
Textile design
