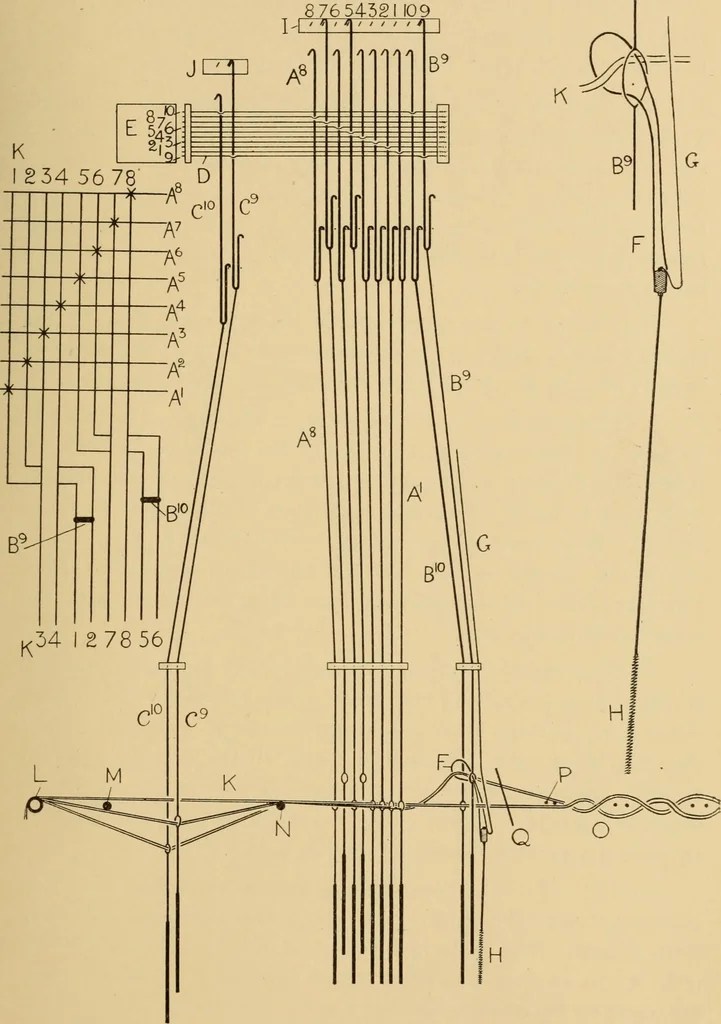

aving the back rest l pass under an auxiliaryeasing bar m and then through the easing harness mail c9 and over afixed round bar n. They are then separated, one thread beingdrawn through the ordinary harness mail a1 and the other throughthe harness mail a2. The second pair or third and fourth… … 194 JACQUARD MECHANISM AND HARNESS MOUNTING. thread is drawn through the ordinary harness mail a3 and the fourththread through the mail a4. Both threads then pass forward togetherfreely between the doup standard harness b9 and b10 to the fell ofthe cloth o which shows a transverse section through…
