Faults in the manufacture of woollen goods and their prevention (1903)
Reiser, Nicolas · London : Scott, Greenwood & Co. ; New York : D. Van Nostrand Co. · leaf 61

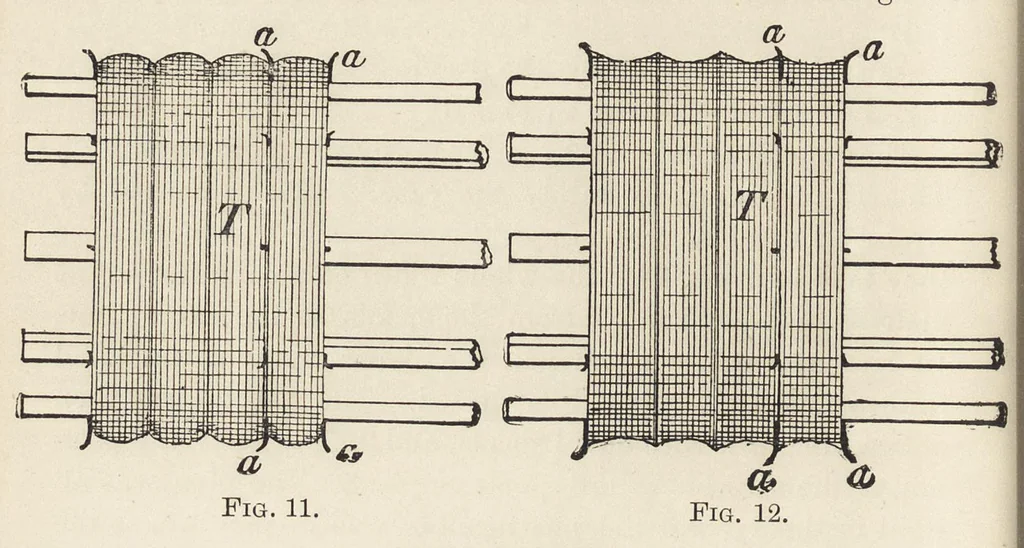

42 FAULTS IN MANUFACTUBE OF WOOLLEN GOODS. tion the threads pass the reed before getting to the drum. The reed can be made wide or narrow according to the warp closeness required, wide for wide-spaced warps and narrow for close-spaced ones. If now the warper does not act conscientiously, and pushes… … Fig. 13. .We see on the drum T depressions between the points marked a. If it is a question of a difficult work, such as piece-dyed worsted, it will be sure to be streaky, and we often see streaks from this cause even in simple goods. If on the other hand the workman pushes the reed too deep, the…
Woolen and worsted manufacture · Woolen and worsted weaving
Internet Archive · Getty Research Institute · Public domain (published before 1931). Free to use for anything.
