The carpenter's assistant : containing a succinct account of Egyptian, Grecian and Roman architecture. Also, a description of the Tuscan, Doric, Ionic, Corinthian and composite orders; together with specifications, practical rules and tables for carpenters, and a glossary of architectural terms. Embellished with upwards of 200 plates of plans, elevations, details, and practical stair-building (1854)

Brown, William, architect, Joy, Lewis E · Boston : Published by Edward Livermore · leaf 203

An illustration from The carpenter's assistant : containing a succinct account of Egyptian, Grecian and Roman architecture. Also, a description of the Tuscan, Doric, Ionic, Corinthian and composite orders; together with specifications, practical rules and tables for carpenters, and a glossary of architectural terms. Embellished with upwards of 200 plates of plans, elevations, details, and practical stair-building, 1854, leaf 203

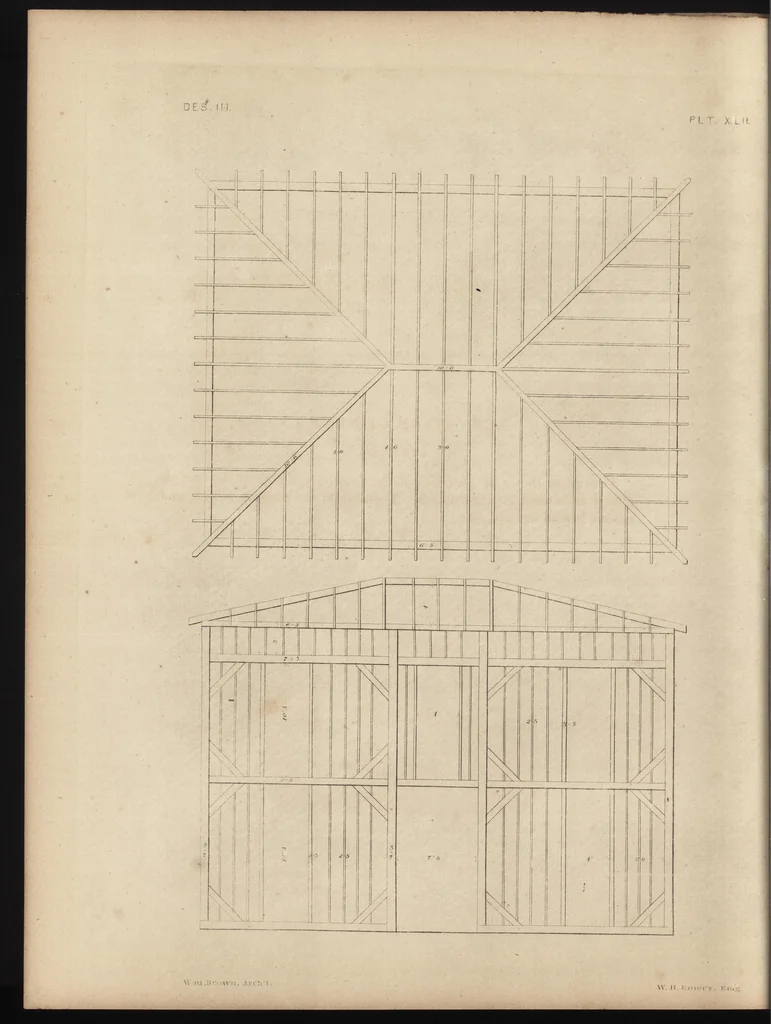

ELEVATION OF FRAME. Plate XLII. This plate shows an elevation of the framing and plan of the roof soplainly as to need no explanation. The sizes of the timbers, height, andspaces, are all marked, &c. 101 102 No. 68.
