A practical handbook of dyeing and calico-printing. With eleven page-plates, forty-seven specimens of dyed and printed fabrics, and thirty-eight woodcuts (1874)
Crookes, William, 1832-1919 · London, Longmans, Green · leaf 201

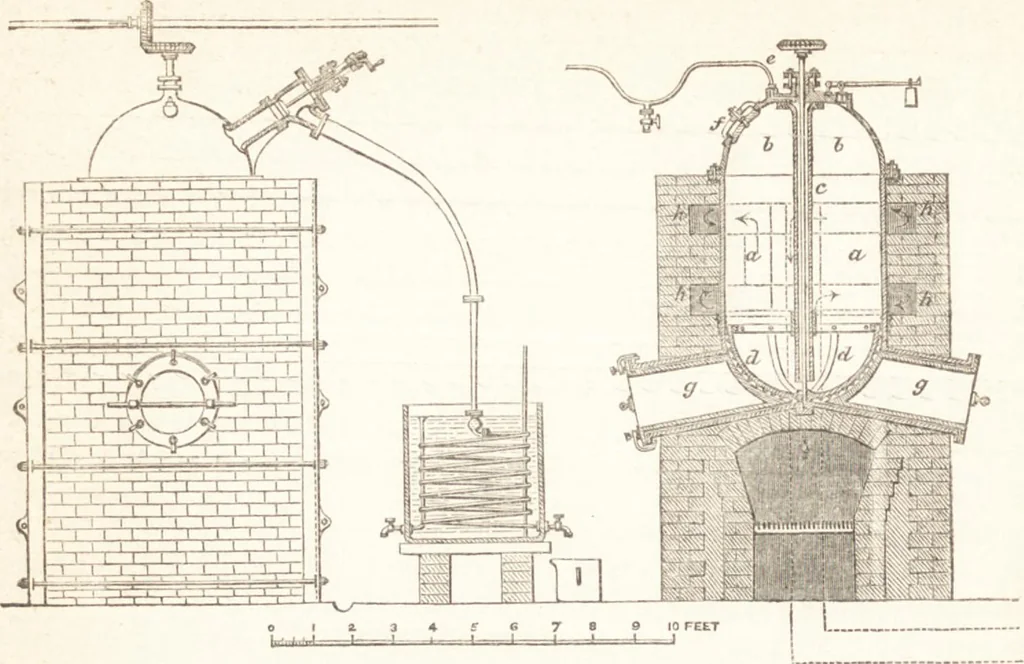

or thetermiination of the process and for completing the volatilisation of the freeanilime. During this time the agitator must be kept in constant motion.Stearm is now allowed to enter by the descending tube, and sweeps awaymechianically the raw aniline yet remaining in the still. By degrees… … 1. Elevation of complete apparatus. 2. Section.Body of retort. b b. Head of retort. C. Axle of agitator, made hollow so as toconduct steam to the bottom of the apparatus. c. Entrance for steam. J. Man-hole, g g. Openings for taking out the colour. h h. Cavities in which hot aircirculates, and which…
Dyes and dyeing · Calico-printing
