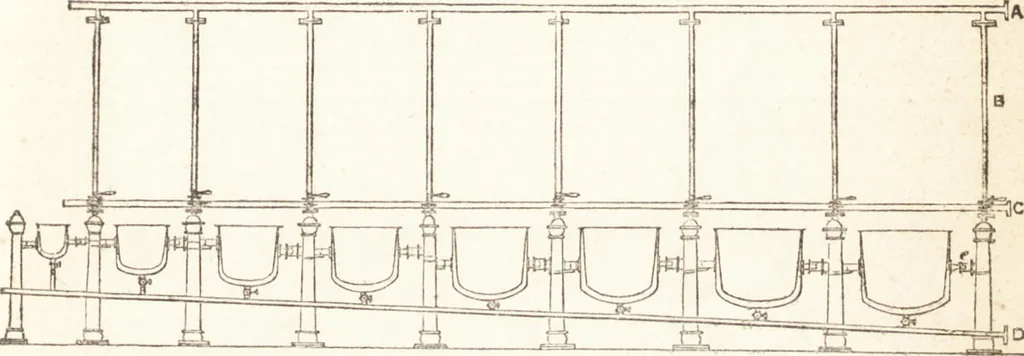

printed from dust and endsof thread, &c. The colour-house, the place where the Ingredients needed in the variousoperations of a print-works are prepared and mixed, is a large, well-ventilatedroom on the ground floor. Along one side of it runs a range of colour pans,of various sizes (Fig. 33).… … EE^ shown in the figure consists of a suit of eight pans, each fitted with a steam-jacket. They vary in size from 1 to 28 gallons, a is a pipe of copper, closedat one end, and open at the other for the entrance of the steam, whichdescends through the vertical pipe, b, as far as the stuffing box, c,…
