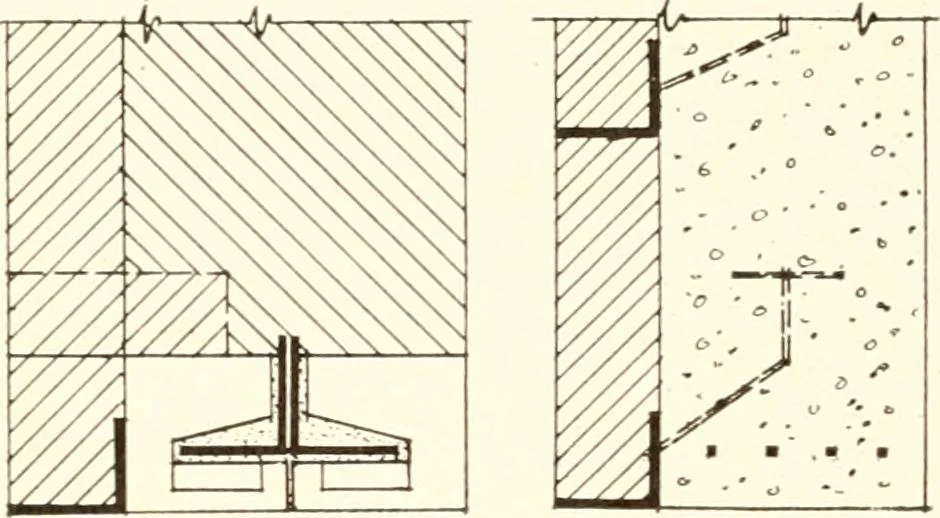

support a part of exterior walls, shall becovered in the same manner, and with thesame material as specified for the exteriorcolumns in this chapter; provided, however,that shelf angles connected to girders bybrackets or projections of girder flanges notfigured as part of the flange section,… … pisr. 48. rigr. 49. Where lintels are fireproofed previously and in-dependently, the Commissioner of Buildings has ruledthat the application of the architectural facing maybe supported as shown (Fig. 48, 49). 846. Beams, Girders and Trusses—Cover-ings of.) (a) The metal beams, girdersand trusses of…
