Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 80

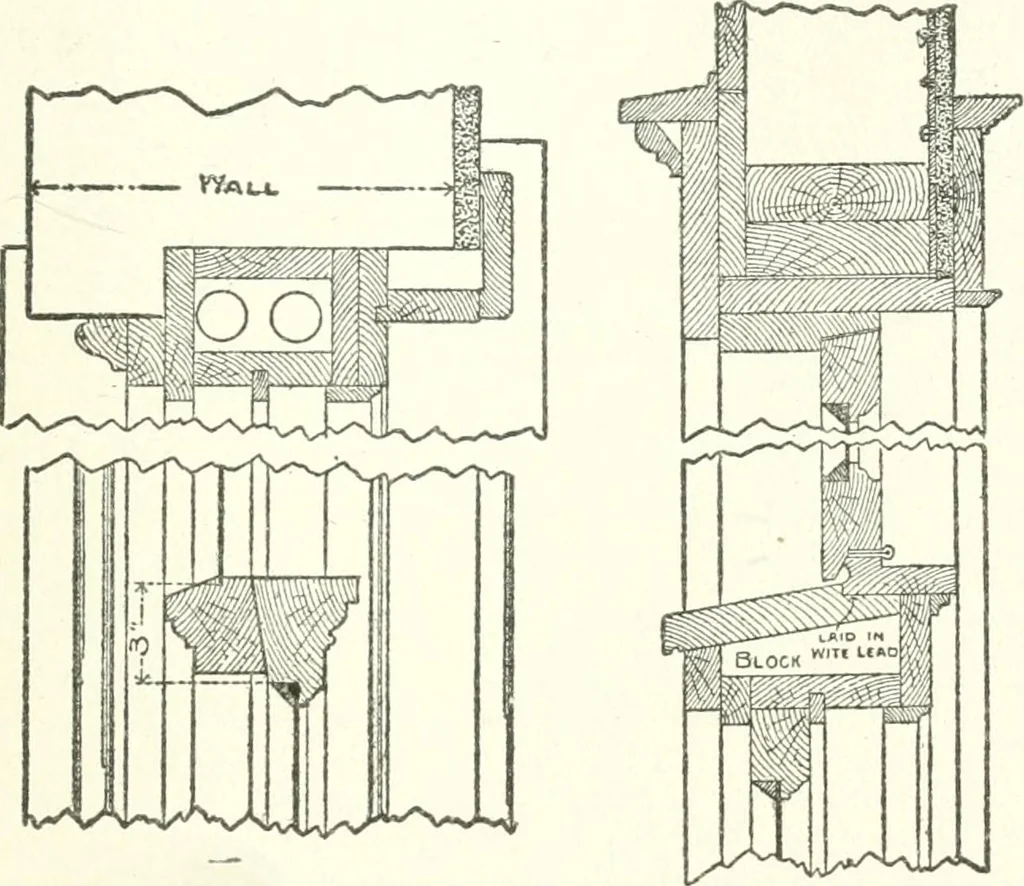

light.This has the appearance of a moulded transombar. The sash being hung the same as in theordinary window, it allows it to be lowered atT\dll, leaving no open joints for the wind andrain to get in when closed. It is well-nigh FRAMING 57 impossible to construct a transom when hungwith butts, and… … Fig. 29. Framing for Transom Windows. A Triple Window. A triple window, withtwo side sash casements, while the center sashis stationary, presents an inteiesting problemin window framing. Fig. 30 shows detailed sections through thesills of both the center and side windows. Boththe outside sill and…
