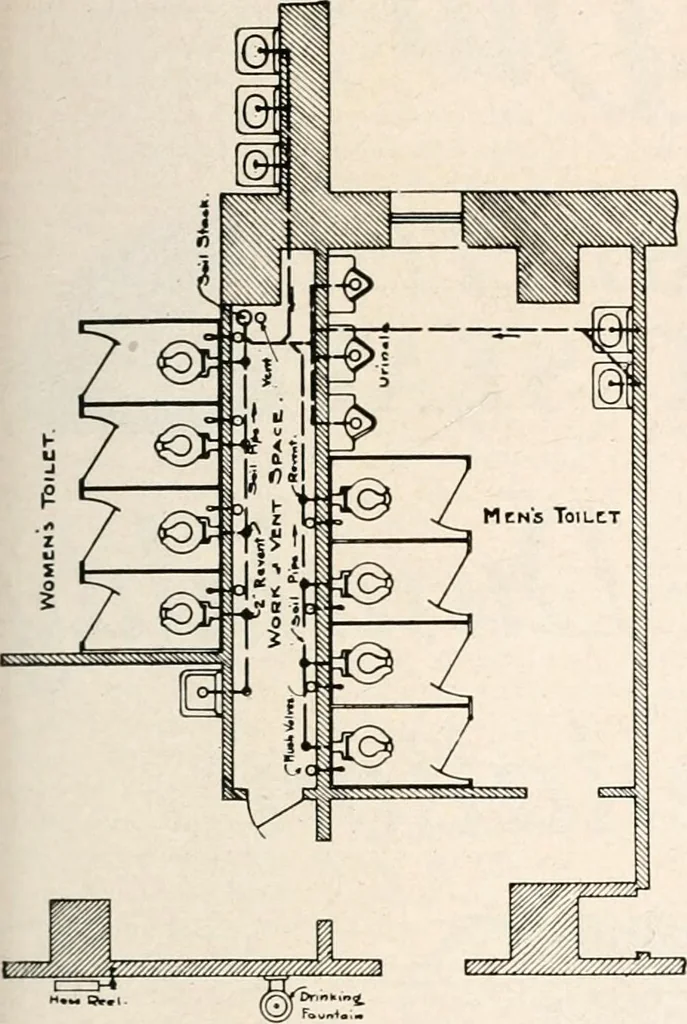

Hoffmann & Billings Mfg.Co. lAMUFAC-rU RERS S I r^ C E IS5S. IV^ I L_ \A/ /\ U K E E . LJ. A. 6X8 very unsati-sfactory partitions for conceal-ment of piping, as no secure anchorage canbe had in same for bolts to fasten hangersor brackets for fixtures; furthermore, con-densation on pipes… … TOILtT DooMi WITH WOOKVCNT ,5PACC DCTWCENiAMC. the location of batli and toilet rooms mustreceive careful study. There are three schemes that may be used. The first, a pipe shaft 2-6 to 3 in widthfxtending up through the building—in whichall piping may be placed and fixtures allprovided with wastes…
