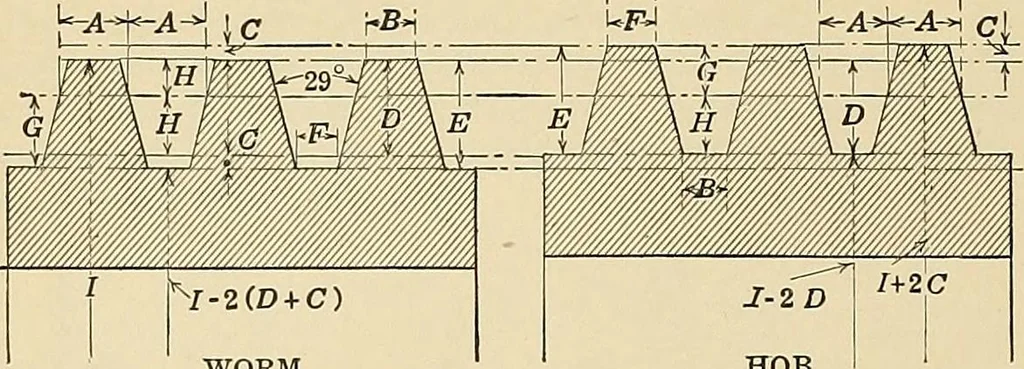

Fig. 6.—Milled worm wheel. they are cut at an angle with the axis equal to the helix angle of theworm as shown in Fig. 6. Very little published information regard- 136 HANDBOOK FOR MACHINE DESIGNERS AND DRAFTSMEN K--P—H W-._P_^ … WORM HOB Table 4.-—Tooth Parts of Worms and Hobs A =thickness of tooth on pitch line = .50 P., B = width at top of thread = .3354 P., C = clearance = .05 P., D = working depth of tooth = .6366 P., £ = total depth of tooth = .6866 P., F = width of thread tool at end = .3095 P.. C = depth of space…
