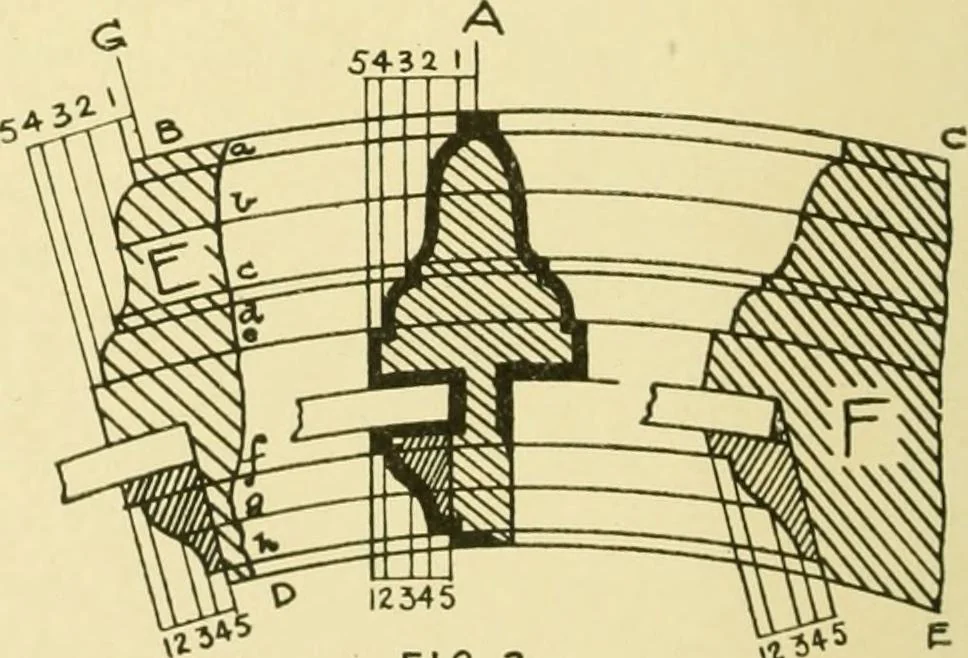

he curves forribs through these points. Thismethod is approximate only, butsufficiently accurate for purposes ofrepresentation. The construction ofthe bed frame is shown in plan, seg-ments are butt jointed, dowelled, and secured with hand rail bolts. To obtainthe sections of mouldings in the dome… … FIG.2. *» Showing Method of Intersection forMouldings on Curved Bars. PRACTICAL SETTING OUT AND APPLIED GEOMETRY 249 a, b, c, d, &c. The section E shows the moulding of the bed frame exactly similarto the rib section. The large moulding of crown (see f) is again the samesection, but owing to…
