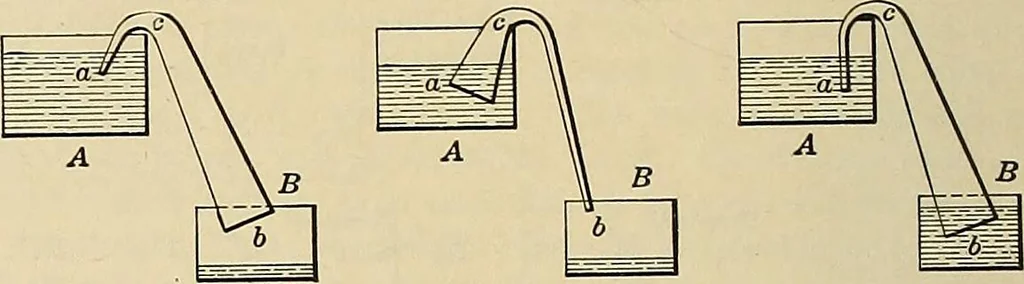

quid column from breaking up.In general, through the effect of capilarity, small siphons will oftenwork even though large ones constructed in the same way will not. In Fig. 42 is shown a reverse construction in which the supply endis made much larger than the discharge end, the latter being… … Fig. 41. Fig. 42. Fig. 43. Figs. 41 to 43.—Operative and inoperative siphons. will be continuously operative so long as the liquid in A is maintainedat a level that will keep the end a submerged. Fig. 43 illustrates how the inoperative form of siphon, shown inFig. 41, may be made operative by…
