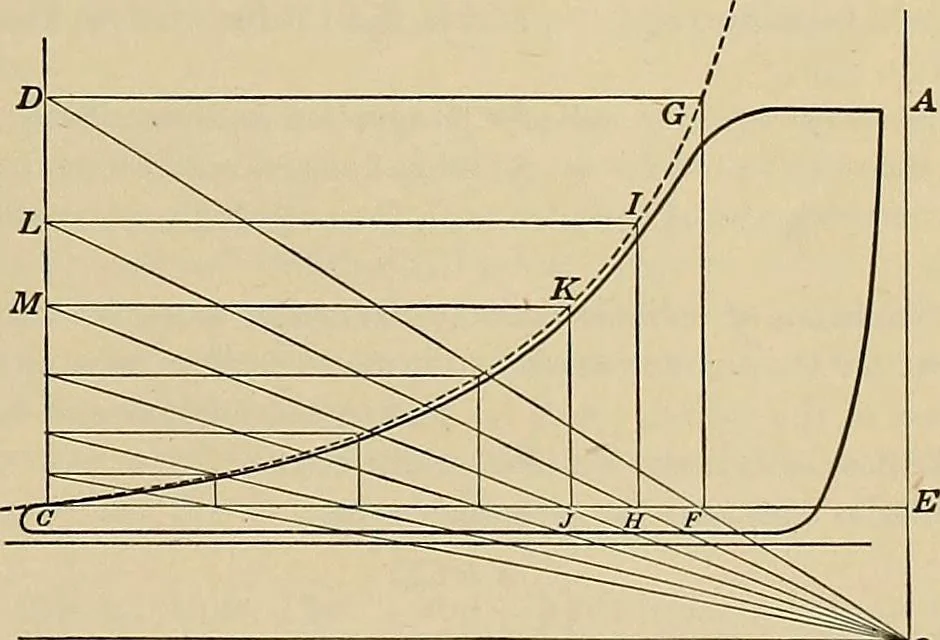

rse power of engines per lb. m.e.p. may be taken fromTable 12. To lay out the hyperbolic or isothermal expansion curve proceed asin Fig. 3. Locate the clearance line AO and the line BO of absolutevacuum. Through any point, as C, draw CE parallel and CDperpendicular to the atmospheric line. Draw… … B O Fig. 3.—Laying out the hyperbolic or isothermal expansion curve. Construction and Dimensions of Parts Current practice in the dimensions of steam-engine parts formed thesubject of an investigation by O. N. Trooien {Bulletin No. 252 ofthe University of Wisconsin) from which the following is…
