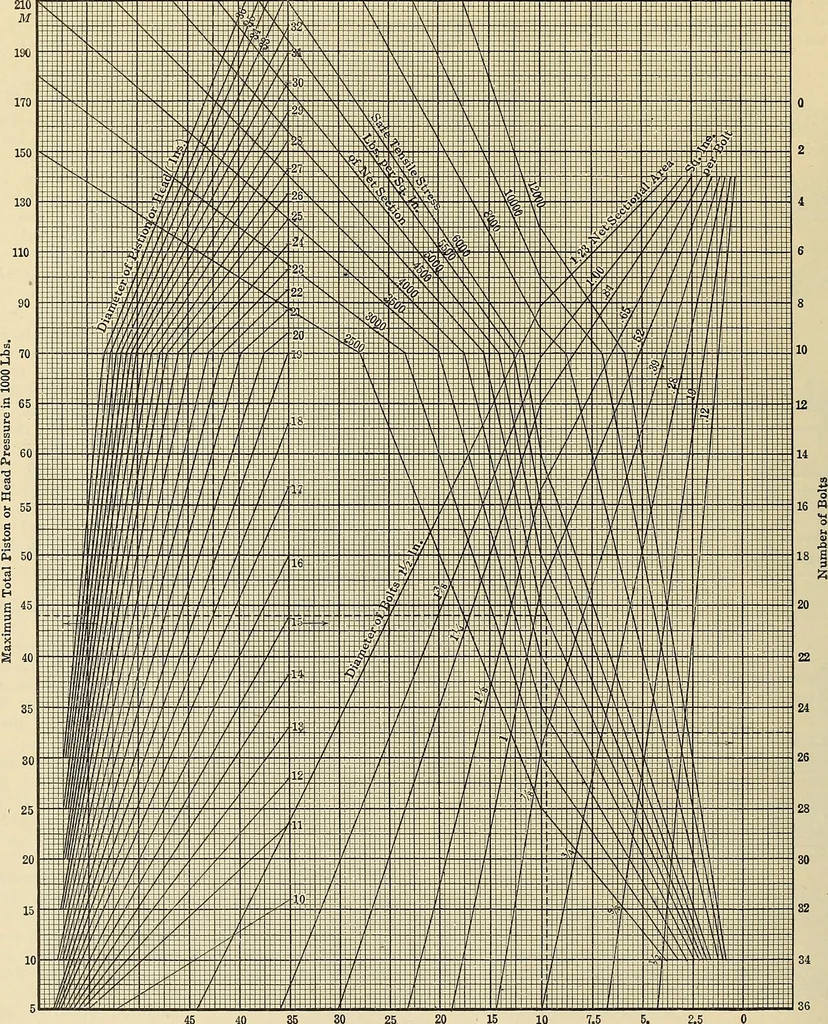

uisance.Fig. 13 shows the joint used on theStraight Line Engine and on the engines of the Ball Engine Co.The joint is not ground but simply faced in a lathe without specialcare or workmanship. The only essential for its success is that it benarrow—not over | in. wide. The distance between stud… … 40 5. 35 30 25 20 15 10 Total Bolt Area: Sq. Ins.of Net SectionTo find the number and diameter of bolts for a steam cylinder head of i8 ins. diameter, subjected to a pressure of 175 lbs. persq. in.: Find 175 on the pressure scale at the top, trace downward to the cylinder diagonal, 18, thence…
