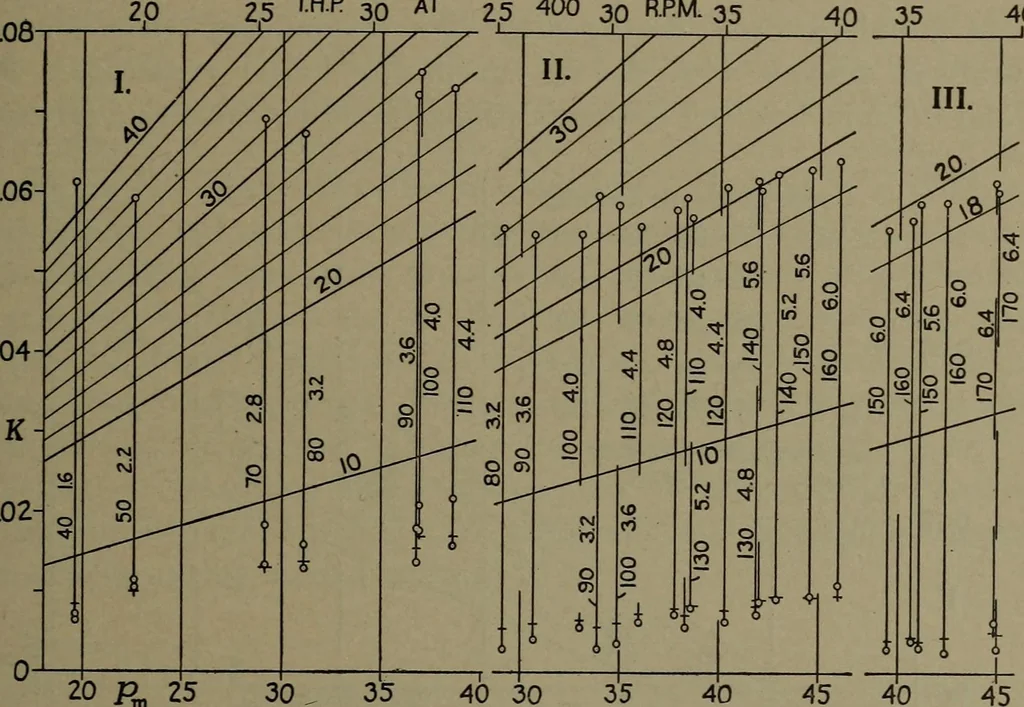

ll engine, and the probability that the irregularities in thedifferences between the i£ms are due to small errors in the feed-watermeasurements makes it hardly worth while to attempt any deductionsfrom these differences. § 22 (/)] EFFECT OF THE CYLINDER WALLS. 185 Largely with the purpose of… … 20 pm 15 30 r Fig. 96.;—Tests of 7, 10, and 14 by 6 in. Willans Central-valve, Single-actingEngine. Group I, low-pressure cylinder, simple; group II, intermediate andlow-pressure, compound; group III, whole engine, triple expansion. Clear-ances, high to low, 0.125, 0.105, 0.058. Engine run with…
