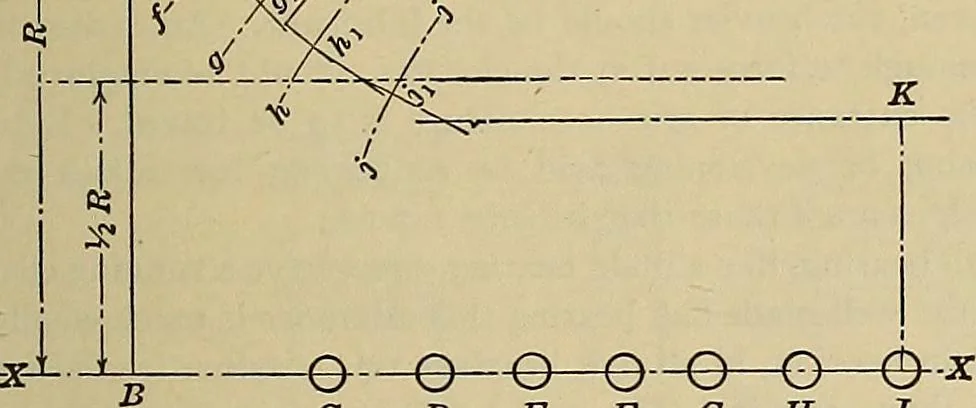

v^M^ … C D E F G H JFig. 29.—Exact and approximate methods of laying out the Schiele curve. same radius proceed similarly, obtaining the line d, D and successivelywith points EFG, etc., until the outer portion of last line drawncomes down to the minimum radius desired for the bearing or to theradius of…
