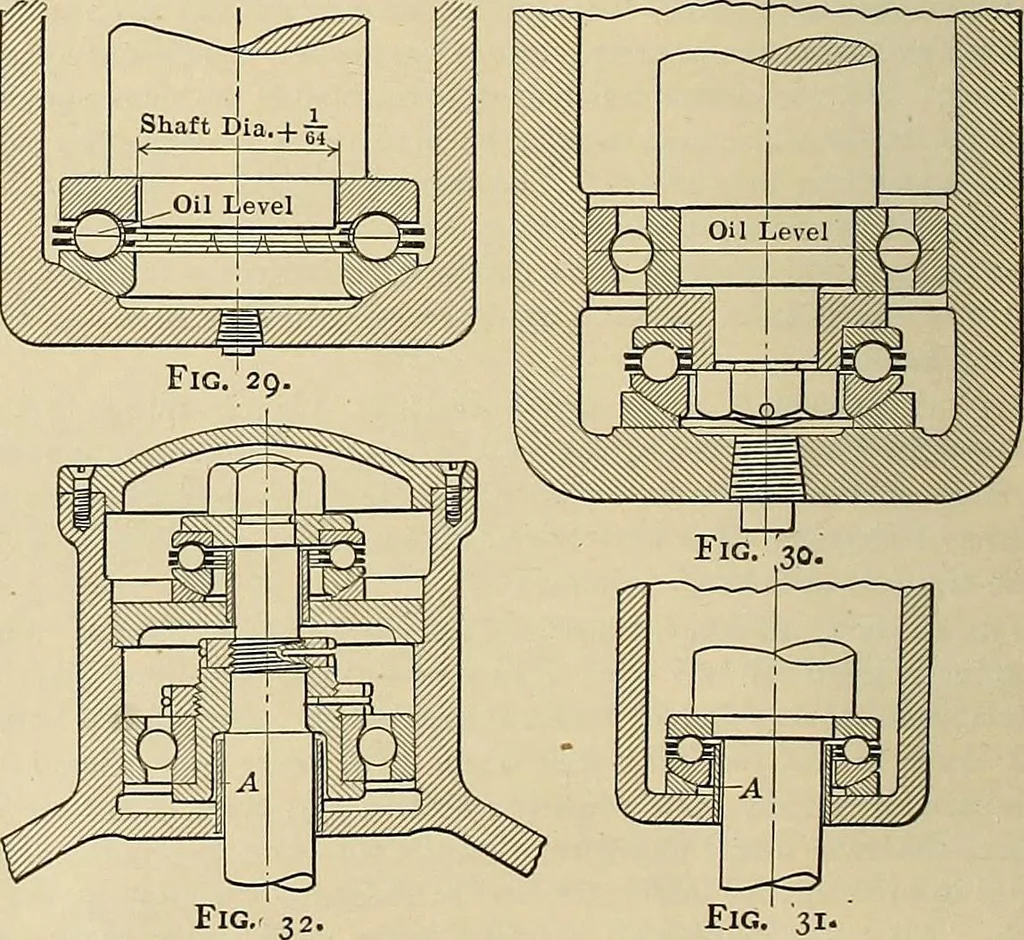

efinite sizeand is usually seated on the shaft. The bore of the fixed plate B israther larger. In order to insure an even distribution of the load over the entireseries of balls, the seating surface of the stationary plate is spherical.If the thrust load is apt to be relieved sufficiently to permit… … Fig. 31. Figs. 29 to 32.—Foot step bearings. is good only for angular misalignment, not for deflections involvinglateral shift of the shaft axis. By arranging two bearings to face in opposite directions, Fig. 23,thrust in opposite directions is taken up on ball bearings. Care must BALL AND ROLLER…
