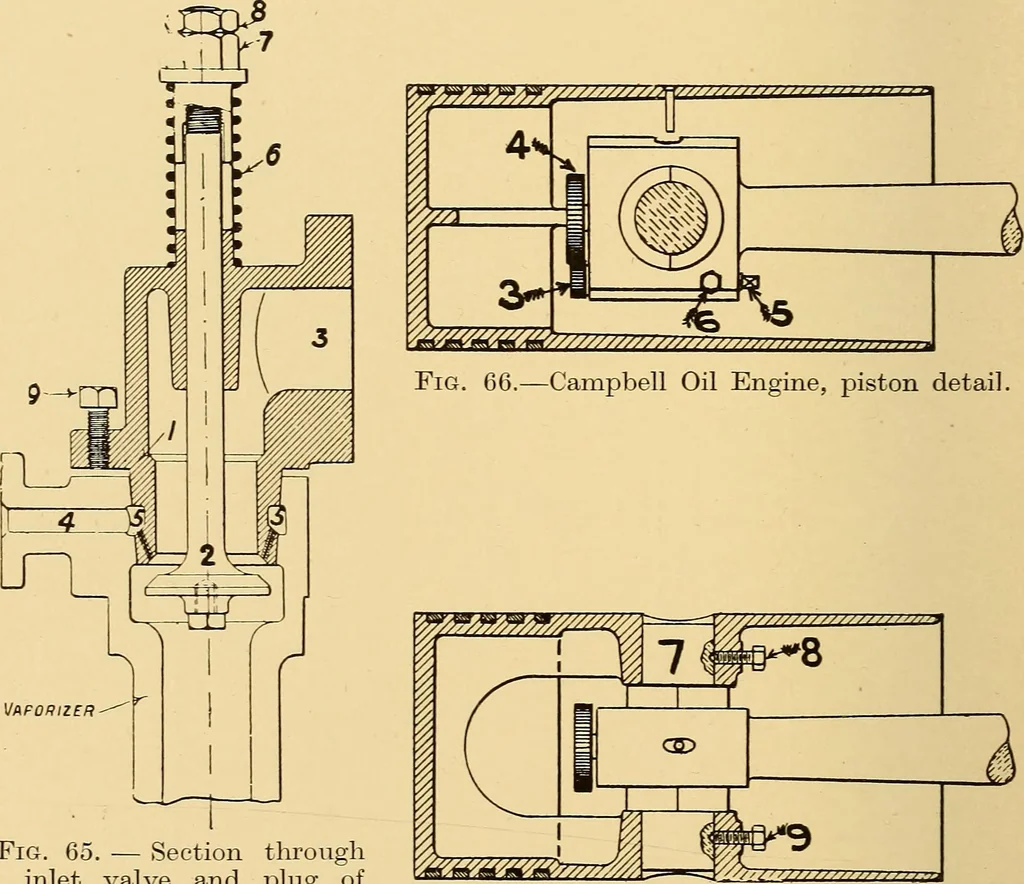

> Fig. 04.—Campbell Oil Engine, illustrating operation of vaporiser 234 THE INTERNAL COMBUSTION ENGINE pushes down a steel piece N, which engages with a cor-responding steel piece 0 on the exhaust lever H, and pre-vents the exhaust valve G from closing. When this valve isheld open no partial… … Fig. 65. — Section throughinlet valve and plug ofCampbell Oil Engine. Fig. 67.—Campbell Oil Engine, piston detail. munication with the atmosphere through the exhaustvalve, and consequently no charge of oil and air can bedrawn into the cylinder. The vaporizer for combining airand oil into an…
