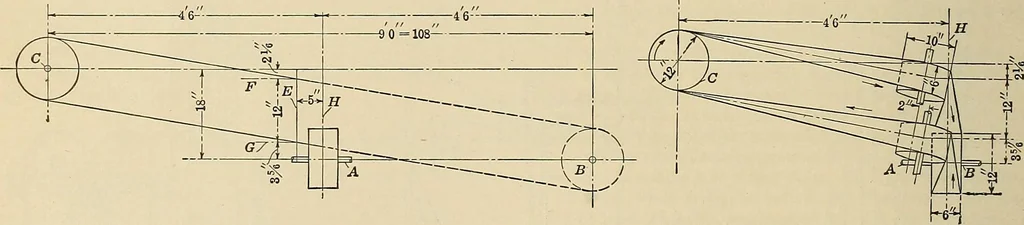

meas-ure from the horizontal lines through C and A to the lines G and F,and, scaling the drawing, shows about 2 ins. and 31 ins. or by calcu-lation 2g and 3f ins., respectively. If desired, the belt may be made to run with the mule pulleys levelwith one of the pulleys, either the upper or the… … Fig. 19. Fig. 20.Figs. 19 and 20.—Laying out mule pulley stands. each division on the diameter of the pulleys is equivalent to 12 ins.Further, 42 -=-12 = 35, which represents the number of spaces that thecenter of the belt will be from the center points of the sides of the upperpulley, as indicated…
