Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1920)

Griffin, Charles Lewis, 1867- [from old catalog], Adams, Charles Clyde, 1882- [from old catalog] joint author · Chicago, American technical society · leaf 137

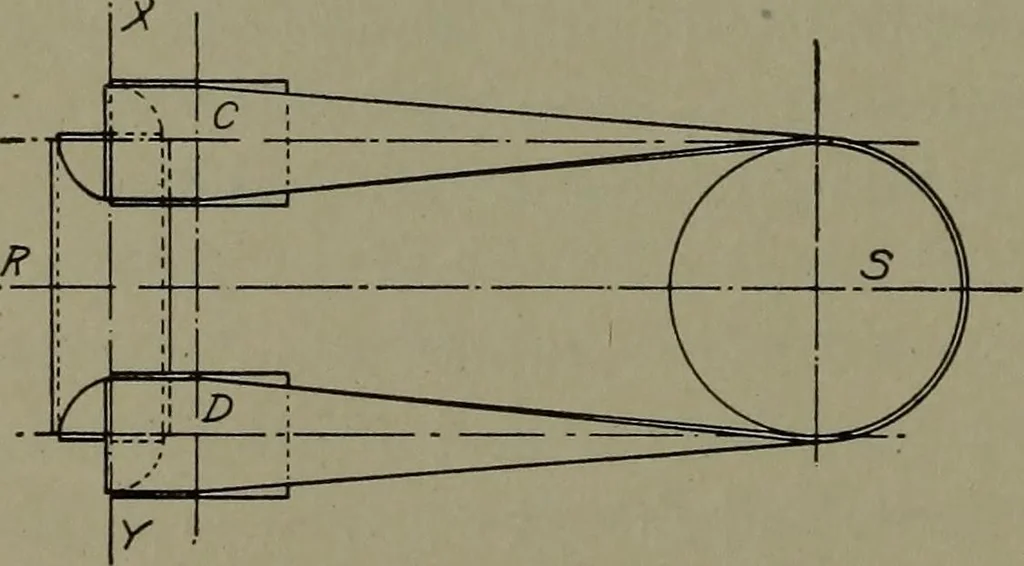

An illustration from Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator, 1920, leaf 137 — Fig. 104. Belt Drive for Same Sized Pulleys, Shaftsnot Parallel but in Same Plane. MACHINE DRAWING 125 M*»
