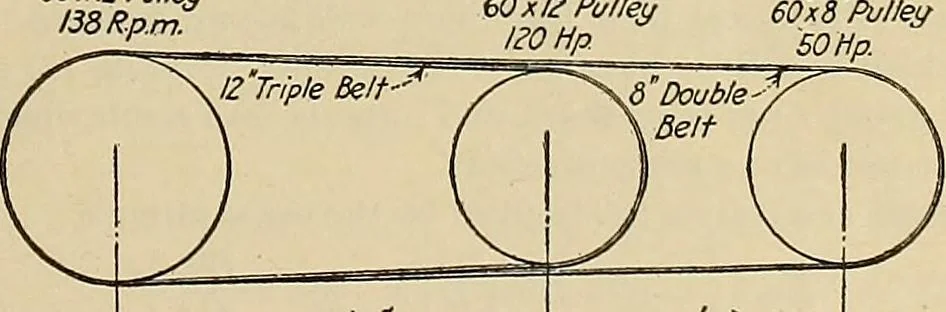

Fig. 21.—A triple drive in use eight years. 65xlZPulfey133 Rpm. 60x/e PulfeyIZOHp. … <■ za-0- »k lo-o—— Fig. 22.—170 h. p. transmitted by tandam drive. square with the line over face of puUeys from C to £ in Fig. 19, andthen adjust the mule stand to and from the beholder, to be perpen-dicular to the belt line from E to B, Fig. 19. The lower mule shaftis to be adjusted in Mke…
