Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 78

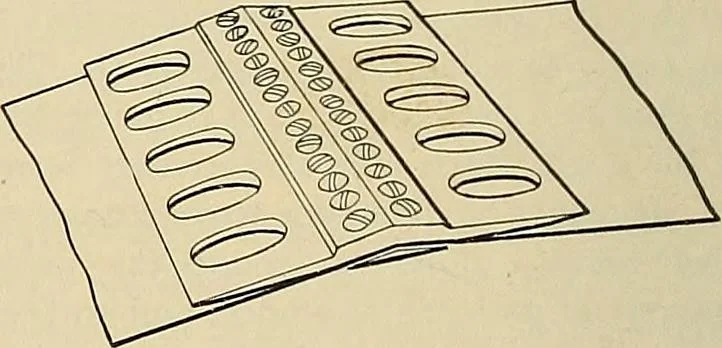

-ro of i per cent., the narrowwidth of the belt compared with leather belts, the proportion beingabout as i to 5, and the great speed at which these belts can be run, ■given as 100 m. per sec, or say 19,000 ft. per min. This latterfigure is striking when compared with the limiting factor,… … Fig. 24.—German steel belt joint. shops and other manufacturing estabhshments, installations of 250h.p. having been made. Table 5 gives some comparative data be-tween a rope drive, a leather-belt drive, and steel-belt drive for 100h.p., transmitted by pulleys 10 m. apart at a speed of 200 r.p.m.…
Machine design
