Modern American locomotive engines; their design, construction and management. A practical work for practical men (1883)
Edwards, Emory, b. 1841 · Bridgeport, Conn., Frederick Keppy · leaf 167

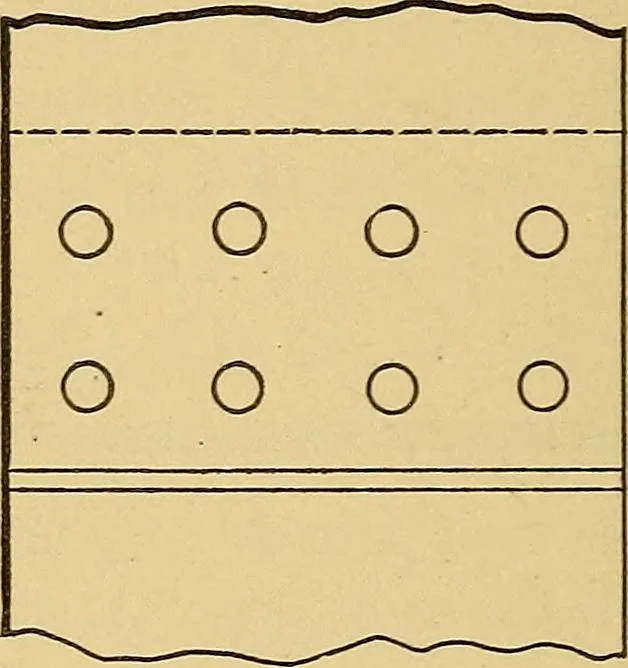

Fig. 39. Fig. 40. making the joint long enough, might be made equalto the width of the sheet, or in excess of it, for injurydone in punching. The joint shown in Fig. 40 isnot strengthened by the second row of rivets, barringthe grip due to contraction of the extra rivets, as thestrength of metal…
