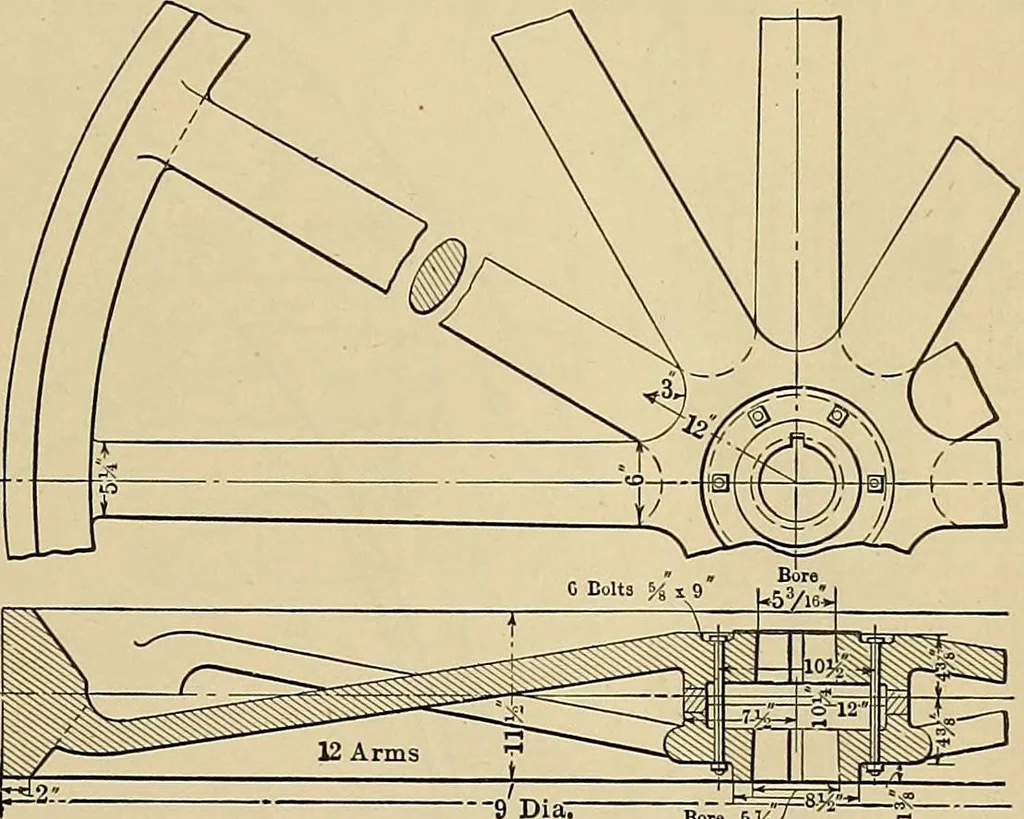

he most striking feature lies in the reinforcing plateswhich are riveted to the sides of the rim casting. There are eight ofthese on each side, and the arrangement of the rivets will be seen tobe such that the plates break joints with one another in such mannerthat there are fourteen effective… … Bore 5%7~ Rim tension at 10,000 ft. per min., rim velocity by formula {d)2777 lbs. per sq. in., no failures.Fig. 5.—The Allis-Chalmers band saw mill fly-wheel. B Dia.,Tum ^^-(L—o^lO Dia,
