Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 89

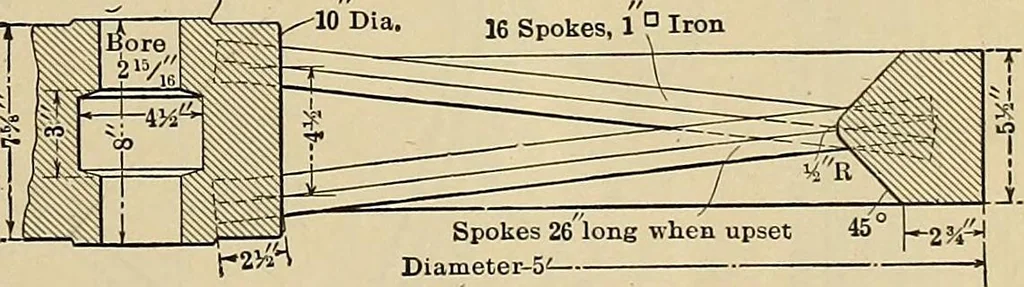

Bore 5%7~ Rim tension at 10,000 ft. per min., rim velocity by formula {d)2777 lbs. per sq. in., no failures.Fig. 5.—The Allis-Chalmers band saw mill fly-wheel. B Dia.,Tum ^^-(L—o^lO Dia, … Rim tension at 10,000 ft. per min., rim velocity by formula (d) 2777 lbs. per sq. in., no failures. Fig. 6.—The Newton band saw mill fly-wheel. A wheel for a rim speed of 15,000 //. per min. is shown in Fig. 8{Amer. Mach., Jan. 27,1913). The wheel is in use at the mills of theIllinois Steel Company…
Machine design
