Hale, Joseph W. L. (Joseph Woodwell Ledwidge), 1886- · New York [etc.] McGraw-Hill book company · leaf 58

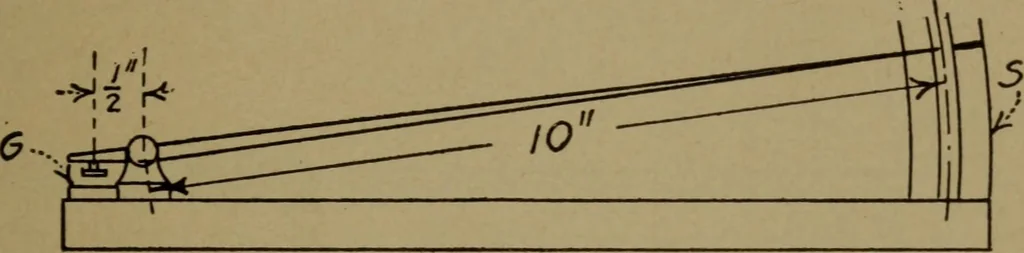

auge to find the reading onthe scale ^S^^ for a given gauge. When the piece is put ina ^G^^ any movement of the pointer above or below thegauge point on ^^>S shows how much too large or too CALCULATION OF LEVERS 43 small the piece is that is being measured. The readingof the scale for different… … Fig. 57. example in testing a piece the end of the long lever moves.2 in. beyond the standard gauge mark, the work beingmeasured is one-twentieth of .2 or .01 in. from thestandard. PROBLEMS 34. In the indicator shown in Fig. 57 the pointer indicates onscale VS a distance of .48 in. beyond the gauge…
Mechanics, Applied
