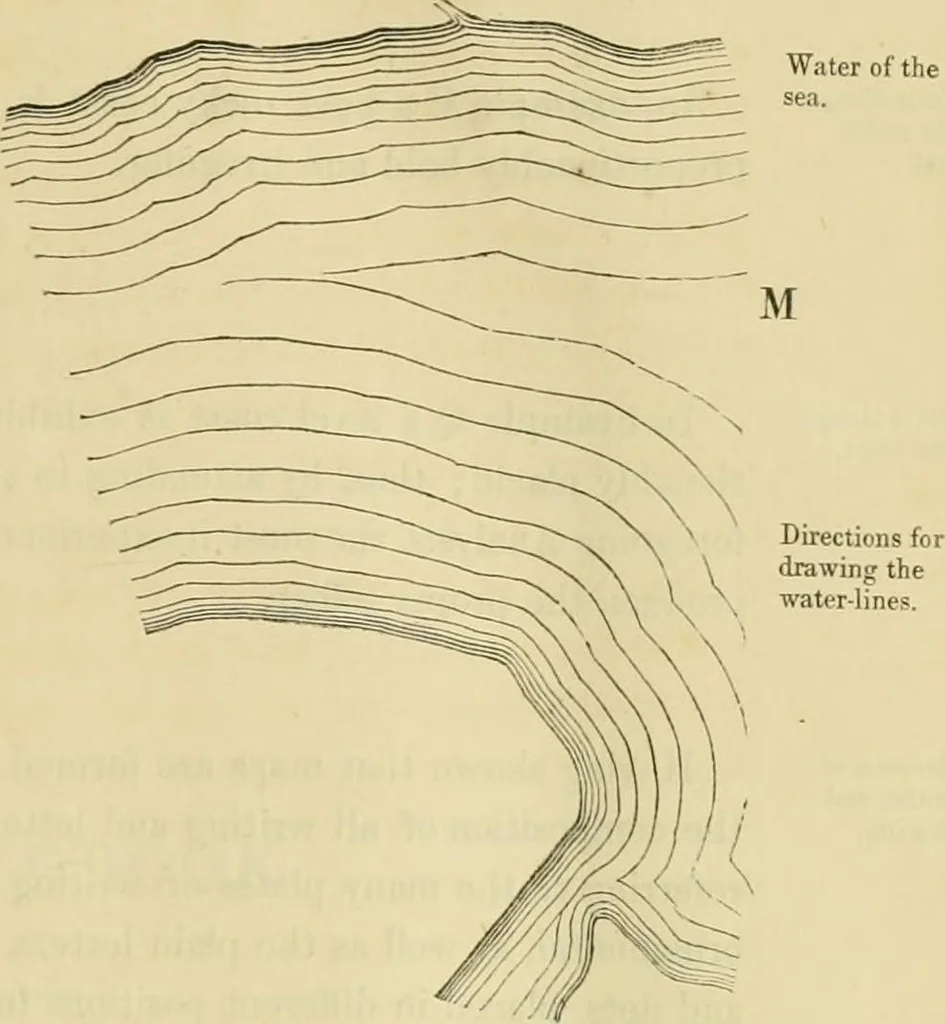

the idea ofan increased space. It should be observed indelineating water, by a series of concentriclines, that the draughtsman must begin to formthe loater-lines close to the shore ; and he mayextend the space between the lines in propor-tion to the extent of space he has to deal with ;that is to… … Besides the methods of representinfj water shown above, lakes and ponds are Water of lakes ^ ° ^ andpoEds. sometimes shown by horizontal lines thus, (N.) Water along coasts is sometimes shown thus, (0.) When the lake or pond is very small, as a, horizontal lines may be drawn entirely across it.…
