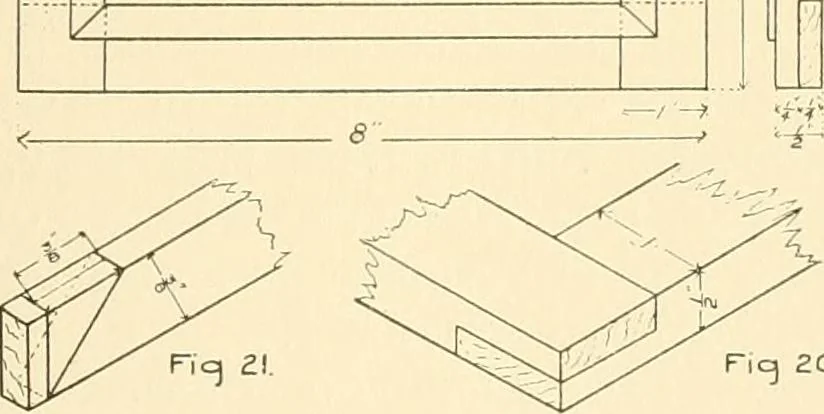

serting the screws the frame is placedin a small cleated board, and the joints drawn to-gether by means of wedges. The narrow band that covers the edges of thewire screen is mitred at the corners and fastened tothe frame with i/< inch nails. Fig. 21 is an isometricview of a section of the band,… … 28 Majiiial Ti^aiiiino^ Coiwse ^> Rough stock:—2 pieces of pine, ^ in. by 1 in.by 11 ins.2 pieces of pine, yi in. by i in. b}^ 9 ins.2 pieces of basswood, yi in. by ^sin. by 10 ins. • 2 pieces of basswood, ].i in. by ^ in. by 8 ins.Screivs:—12 screws i/i inch. No. 5.Nails:-—14 nails ^ inch, No.…
