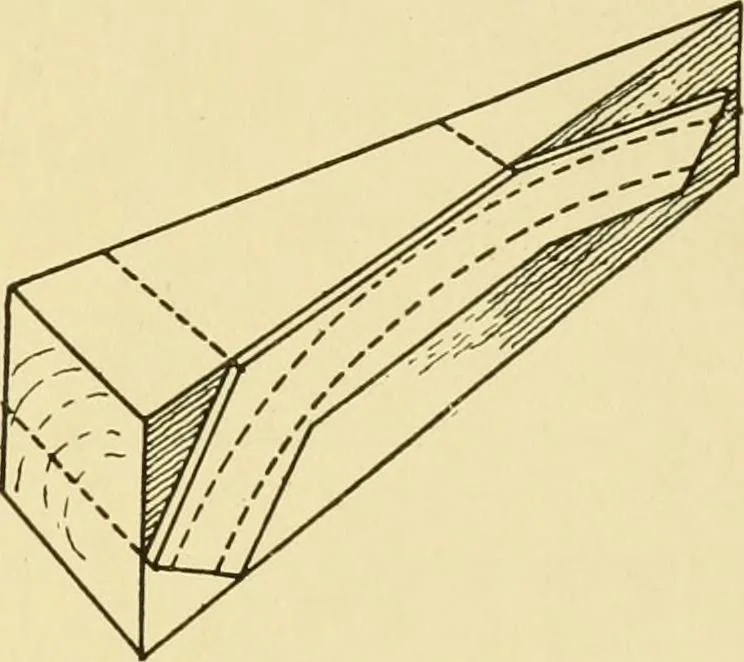

View showing a Rib Chamfered downto Outline. PRACTICAL SETTING OUT AND APPLIED GEOMETRY 247 … 1. Marking out the Rib Shapes-ist Stage. with a trammel. The figure cx c2 dl will now represent a half elevation of thedome, diagram G. The dotted line indicates the outside line of the template,and the inside line is gauged from this edge after it is cut. The segment isobtained in a like manner.…
