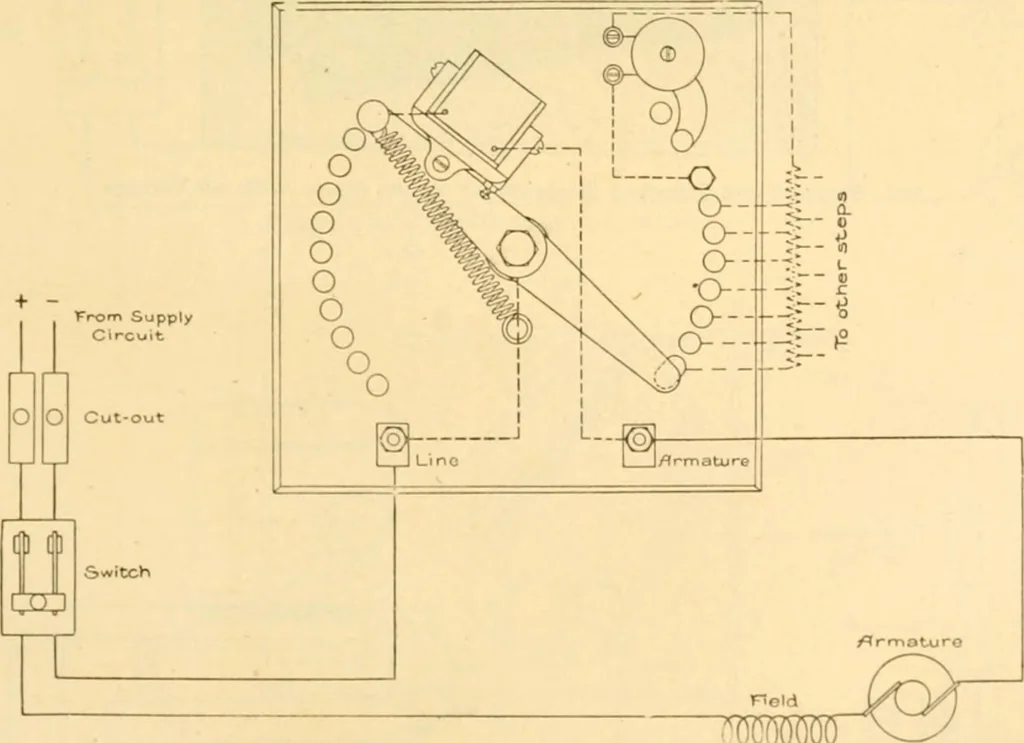

104. Diagram of S. and S. Rheostat.(h) Diagram of General Electric S. and S. rheostat (fig. 105) for larger seriesmotor with underload release magnet in the armature circuit and magneticblow-out at the first step; stops on left-hand side are connected with middlepivots of coils on right-hand side. … mrnr 105. Diagram of S. and S. Rheostat for Larger Series Motor. (c) The armature of the retaining magnet is adjusted by means of the screwand nut to hold at a c-urrent ecjual to about 5) per cent of tiie full-load amperesof the smallest size of motor with wliich the rheostat is used. Therefore…
