Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U. S. seacoast defenses .. (1904)
United States. War Dept · Washington, Govt. print. off. · leaf 38

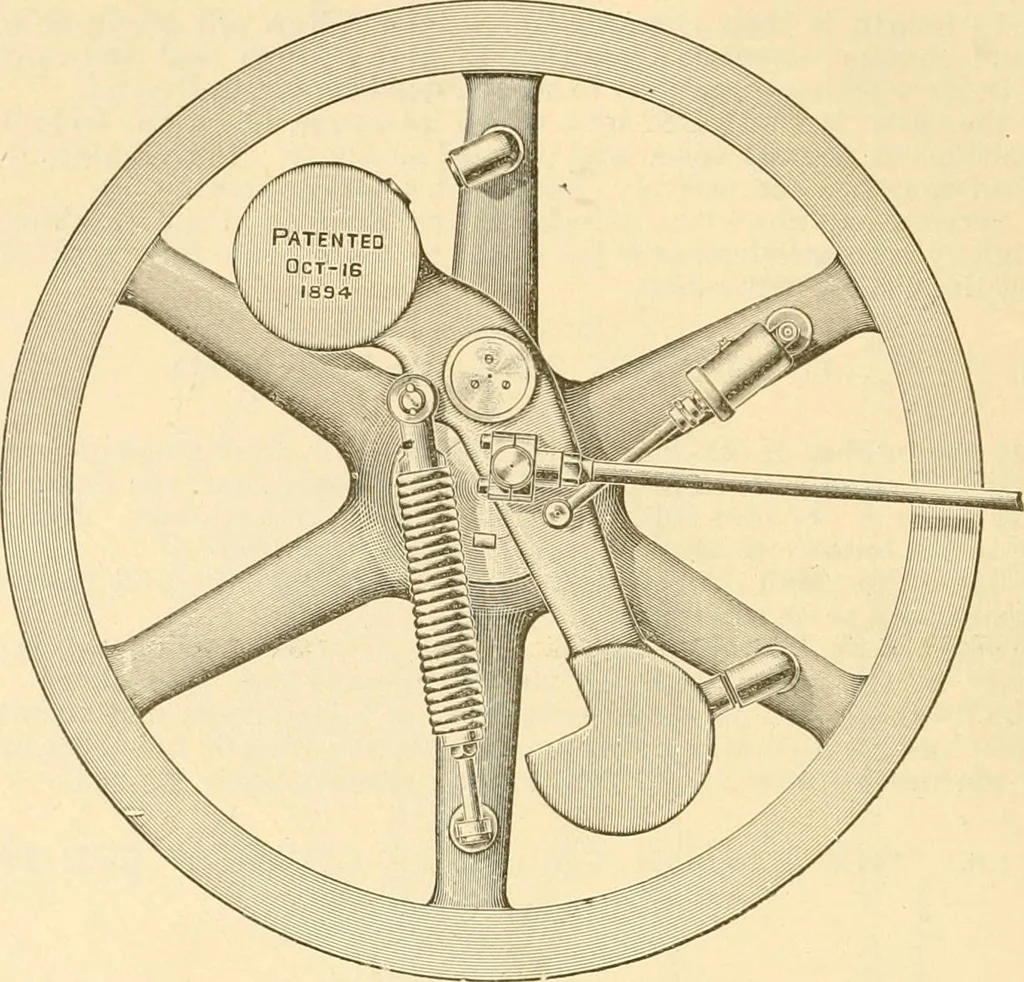

nd i)ort from the niiddl<> of the chest and fromthe interior of the valve by way of tlie right-hand oi)ening. The exhaustoccurs (juickly at either end of the cylinder through direct pa.ssages. The valvecarries check rings at both ends. Tlie Rites governor (fig. 24h) is extremely simple,… … 24b. A. and S. Governor. The main journals have chain continiions oilers; the crank pin, a centrifugaloiling device; and the crosshead runs in oil, all supplied from a central reservoir.There is no throwing of oil. Fig. 22o shows the new Armington & Sims wheel governor and its con-nection with…
Electric machinery · Searchlights · Coast defenses
