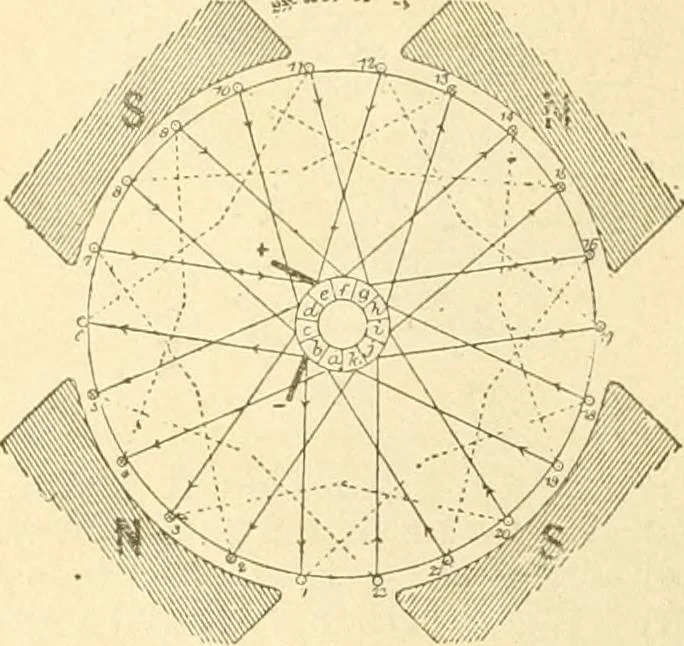

r the armatureshown in fig. 48. Or, uijon paper, draw rectangles to represent all poles, in aparallel row show all of the bars, and then draw single lines from the bars torepresent the coils as they are found on the cylinder in one position. 46. Fig. 46 is a 4-pole, 17-coil, wave, drntQwinding.…
