Pattern making and foundry practice; a plain statement of the methods of wood pattern making, as practiced in modern pattern shops, with complete instructions for sweep work and notes on foundry practice, together with numerous drawings taken from actual patterns .. (1905)

Hand, L. H. (Louis Henry), b. 1854 · Chicago, F. J. Drake & co. · leaf 78

An illustration from Pattern making and foundry practice; a plain statement of the methods of wood pattern making, as practiced in modern pattern shops, with complete instructions for sweep work and notes on foundry practice, together with numerous drawings taken from actual patterns .., 1905, leaf 78

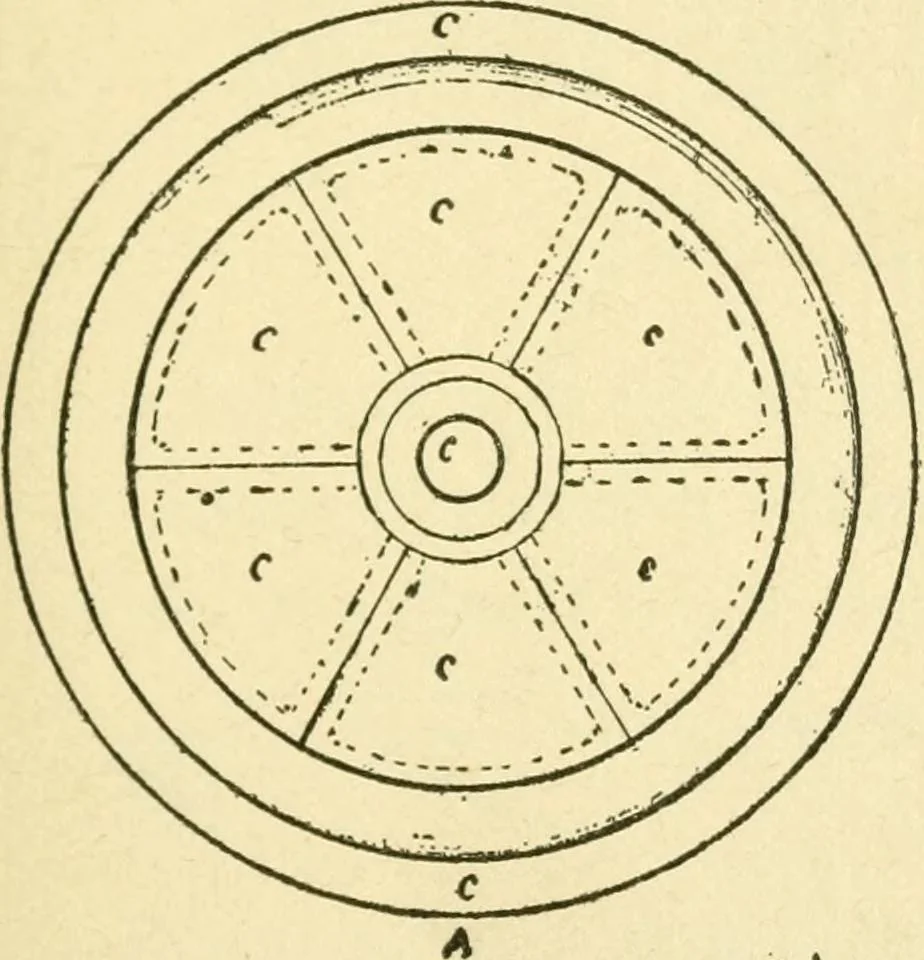

ended because of its greater cost and inferiorityto other ways of doing the work, it is well thatthe pattern maker should be familiar with theprocess. To make this pattern the wheel shouldbe made as shown in Fig. o34, with spokes and AND FOUNDRY PRACTICE 73 hub complete. The center hole, the hub,… … T75 3<r
