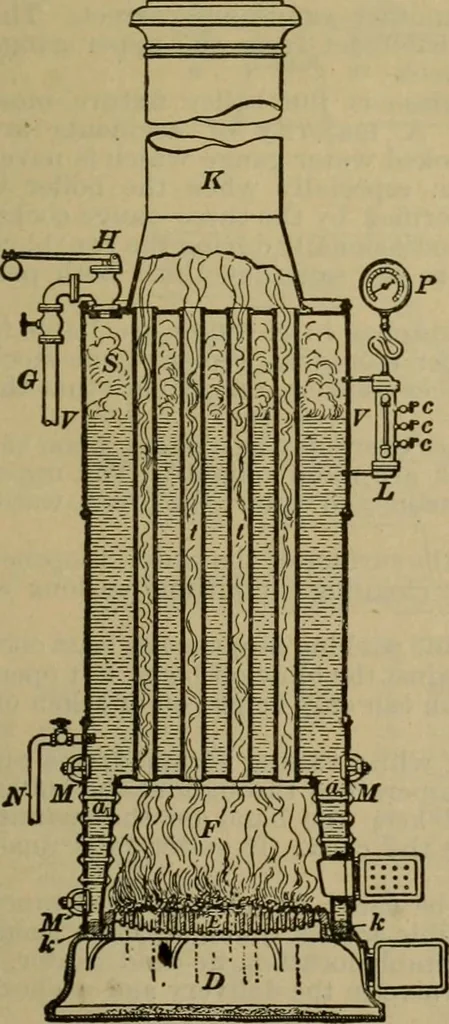

by the spring S acting on therod T. The outer seat N is formed on thebody A of the valve, while the inner andsmaller seat M is formed on the tipper edgeof a cylindrical chamber B which is con-nected to the body A by arms containing thepassages C C. The hollow chamber B formsa guide for the valve V.… … 3. Upright Boiler. 1. K, smokestack ; H, weight safety valve ;G, feed pipe; S, steam space; P, pressuregauge \ c c c, gauge cocks ; I, water line ; / t,fire tubes; N, feed pipe with stop valve;iir M M, hand holes ; a a, stay bolts ; F, firebox ; E, grate ; D, ash pit; k, ring ; 10 HANDBOOK FOR…
