Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U.S. seacoast defenses (1902)

United States. War Dept, Anderson, George Lucius, 1849-1934 · Washington, Govt. Print. Off. · leaf 174

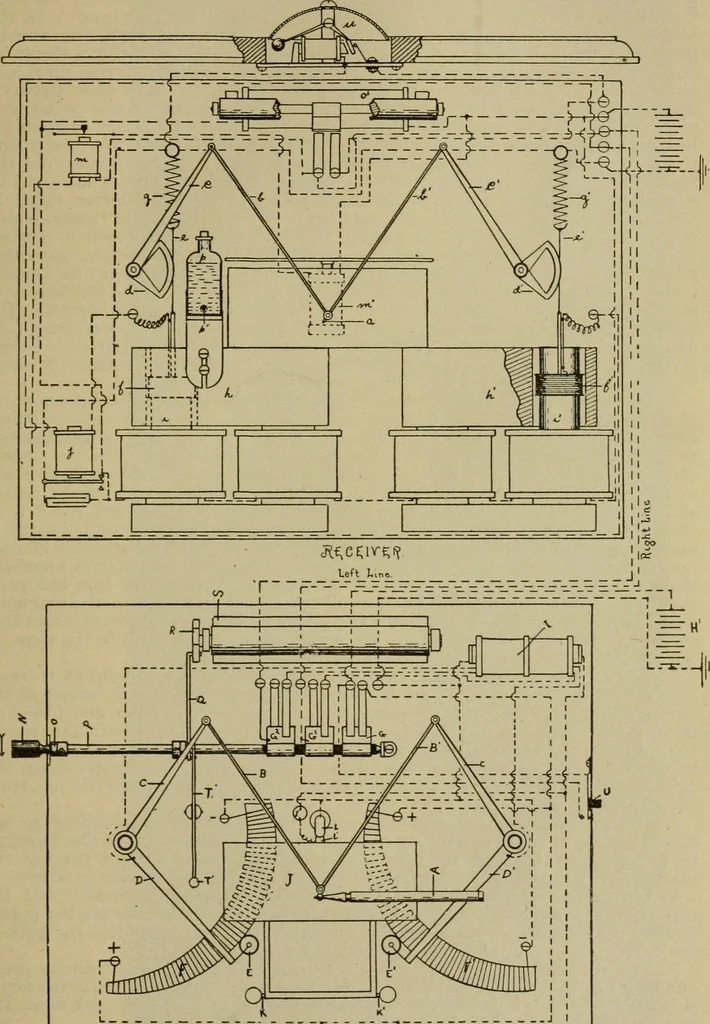

An illustration from Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U.S. seacoast defenses, 1902, leaf 174 — 167. Telautograph, with Cover Removed to Show the Working Parts. 124 TELEGRAPHY. 125 … e^:n.. Tl^f\Kf>MlTTE;(\ 169. Transmitter and Receiver. 126 HANDBOOK FOR ELECTRICIANS. writing position as shown. The contact arm D is connected to the left linethroiTgli the other secondary of the induction coil I through the left line con-tacts G2 of master switch. The writing platen J is…

Electric machinery · Searchlights · Coast defenses
