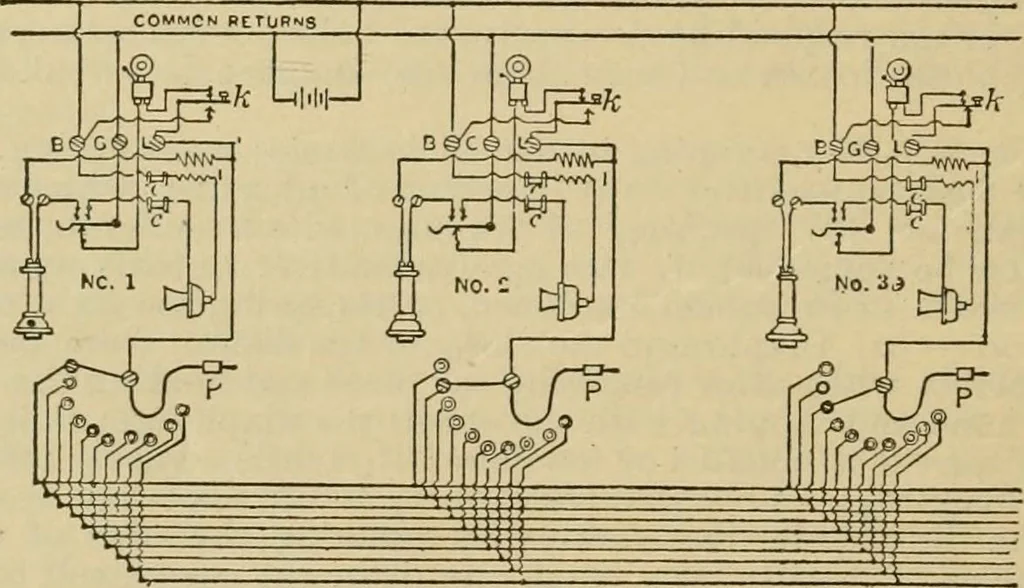

173. No Central. 2. A common battery is a feature of modern systems. In fig. 174 each of theten lines is connected with 10-springs jacks on each of the ten telephones (threeshown). P is plugged to the No. of the station called, c and c are impedance 64TTCRVWI(!E … 174. Common Battery, 10 Stations. coils on either side of the transmitter circuit to prevent cross talk when morethan two stations communicate. a. The Holtzer-Cabot system is extensively used (fig. 175).
