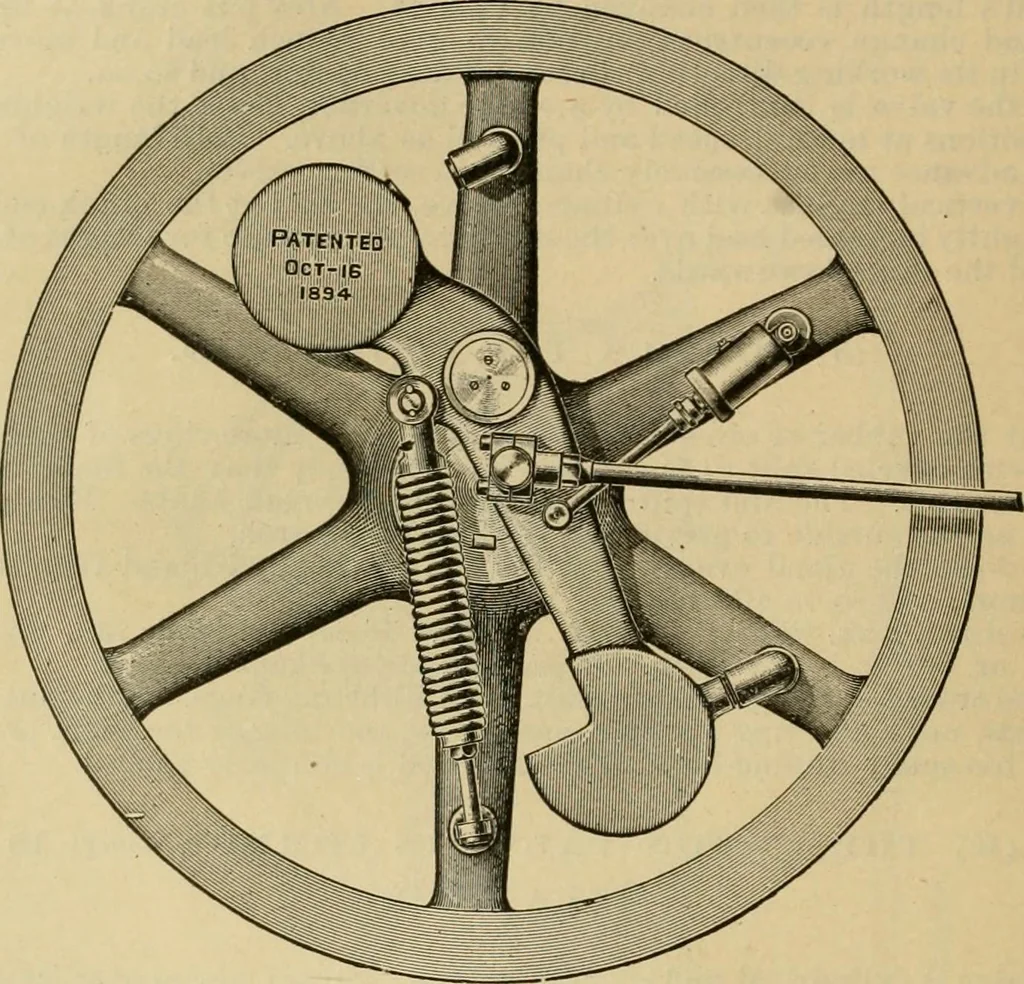

rted into the head-end port from the middle of the chest and fromthe interior of the valve by way of the right-hand opening. The exhaustoccurs quickly at either end of the cylinder through direct passages. The valvecarries check rings at both ends. The Rites governor (fig. 24b) is extremely simple,… … 24b. A. and S. Governor. The main journals have chain continuous oilers; the crank pin, a centrifugaloiling device; and the crosshead runs in oil, all supplied from a central reservoir.There is no throwing of oil. Fig. 22a shows the new Armington & Sims wheel governor and ils con-nection with…
