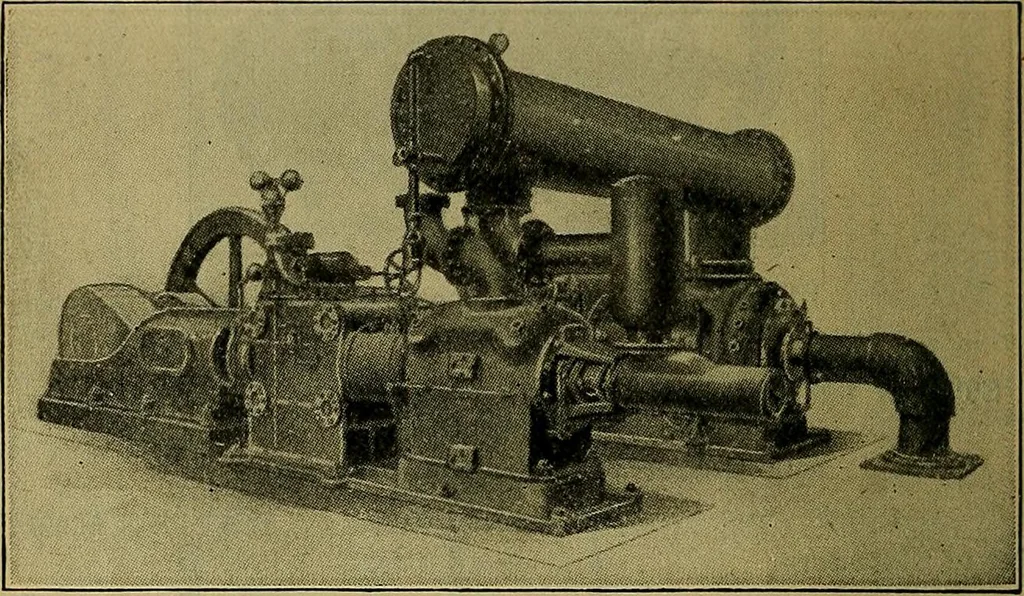

Fig. 9. Ingersoll-Rand Straight Line StearStage Air Compressor. Driven Two- 18 HANDBOOK OF CONSTRUCTION PLANT The prices of compressors of the above type with simple steamcylinders vary from $5.50 per cu. ft. of displaced air for the7x10x6x10 size to $3.00 for the larger sizes. These com-pressors… … Fig. 10. Ingersoll-Rand Duplex Corliss Steam DrivenAir Compressor. CORLISS ENGINE DRIVEN COMPRESSORS, SIMPLE STEAM, TWO-STAGE, AIR CYLINDERSSteam Pressure 90-120 Lbs. Size ofCylindersDiam-eters _ m o G I.H.P.in SteamCylinder at DimensionsFt. 9 * * 16 27 16 18 30 18 20 33 20 22 37 22…
