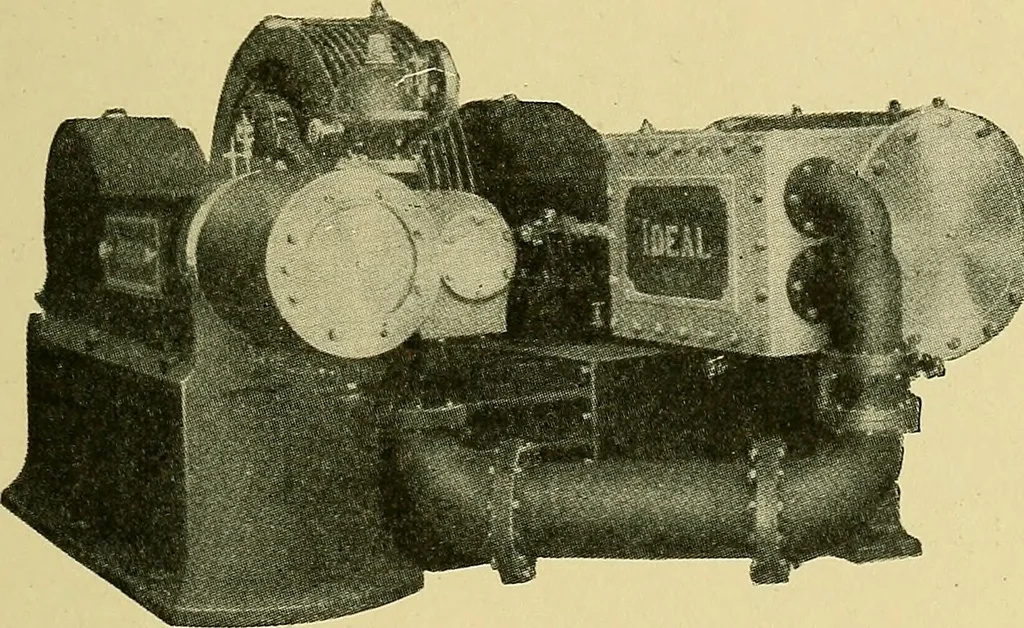

s exhausted into the larger cyUnder,where it expands further. The cyUnders should be so proportionedthat approximately the same amount of work can be done in each,which may be accompUshed by making the high pressure cylinderenough smaller than the low so that when the steam leaves the highat a… … Fig. 20. Typical Cros8-Ck)mpound Engine Besides being economical, the cross-compound has a distinctmechanical advantage. The two cranks may be set at right anglesso that when one is on dead center, the other is at a position of nearlyits greatest effort. This makes a dead center impossible, and…
