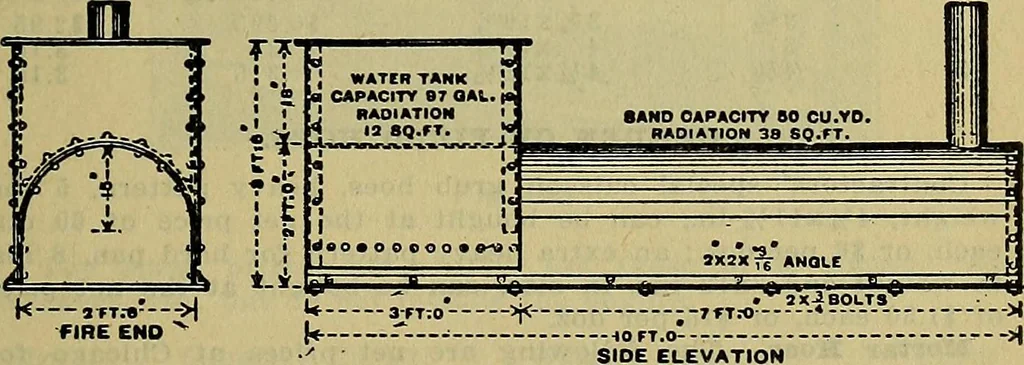

Fig. 161. and a short smokestack is erected on top. On the other end awater tank having a capacity of 97 gallons and with a radia-tion of 12 square feet is constructed. A wood fire is built underthe work and the sand and gravel to be heated are heaped onthe top and sides. It weighs 1,200 lbs. and… … ELEVATION COMBINED WATER, SAND AND STONE HEATER FOR OONCRETE WORK IN WINTER i i =-■ z~^ ^^^ n o| .L^^Jj ; Fig. 161A. PLAN Combined Water, Sand and Stone Heater for ConcreteWork in Winter. HANDBOOK OF CONSTRUCTION PLANT HODS Mortar and Brick Hods. *The net prices for wooden mortarand brick hods in…
