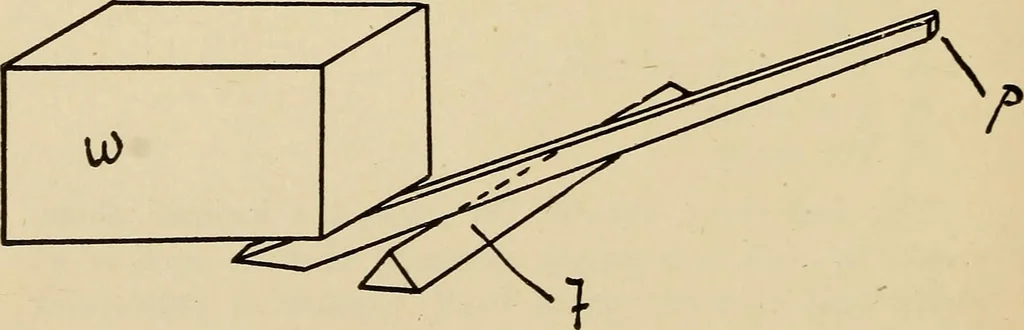

eans a stationary propor support). When acted upon by two forces in oppositedirections, one force acts as a power and the other as aload. Therefore, in the law of the lever three points must beconsidered: First. The fulcrum or point, about which the barturns. Second. The point where the power is… … Fig. 64 P = Power.F = Fulcrum.W = Weight, in all figures. THE SIMPLE MACHINES 257 In the second class the weight is between the powerand the fulcrum. (Fig. 65.) u)
